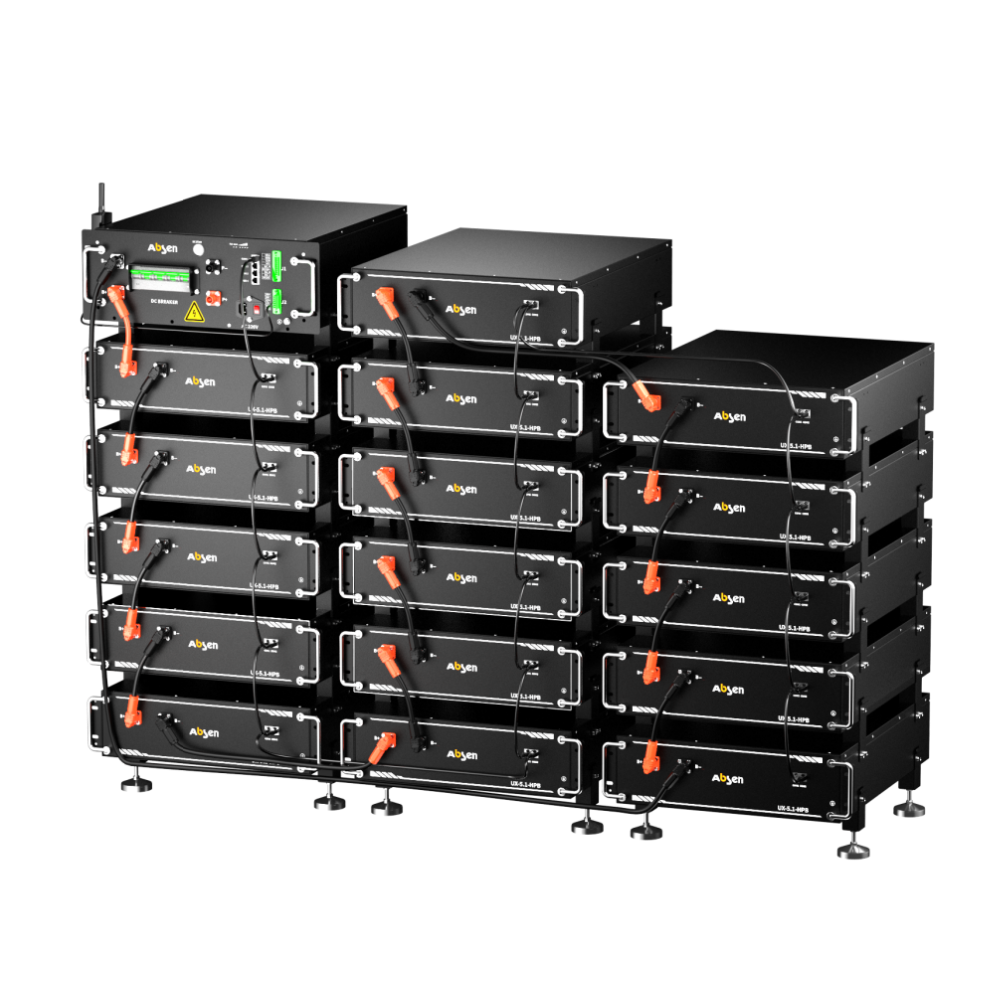

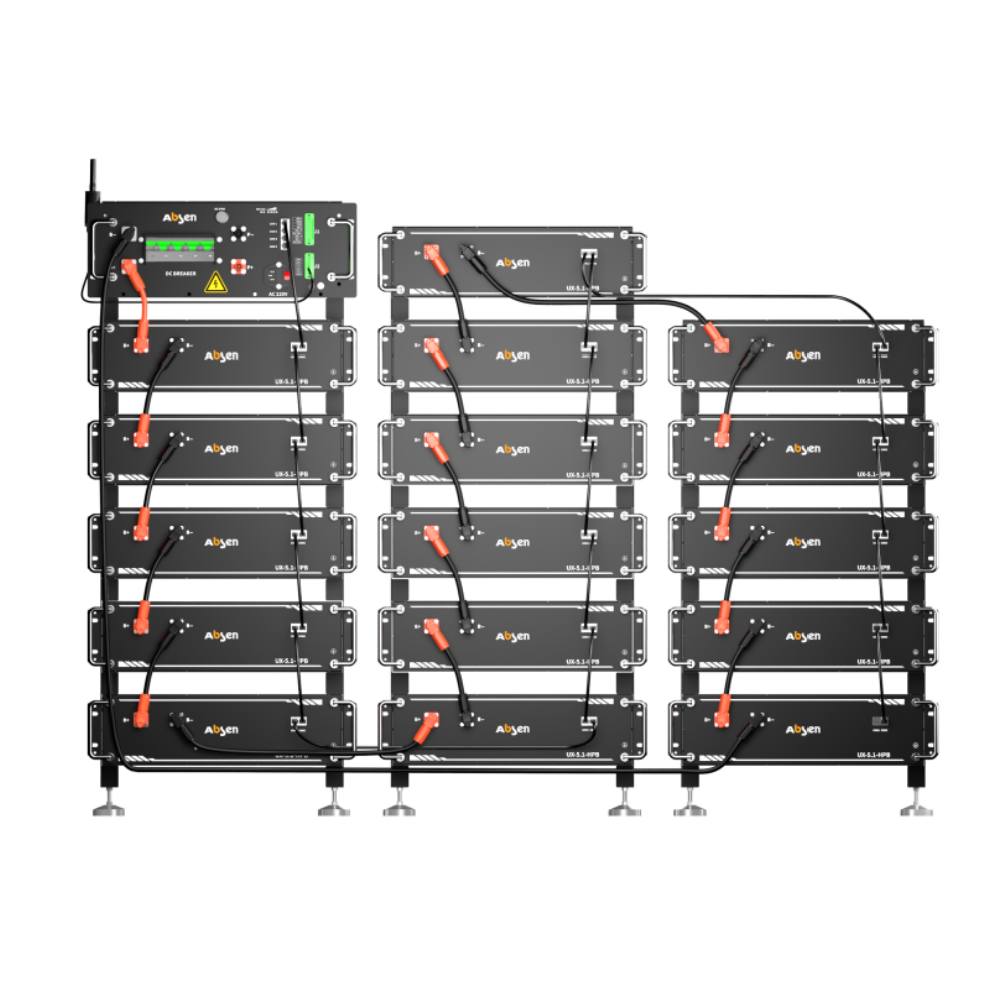

Air CoolingUnity HV2
72-253kWh
Stacked C&I Battery
| Model | UX-25.6-HPB | UX-56.3-HPB | UX-81.9-HPB |
| Battery Type | LFP | ||
| Battery Pack Number | 5 | 11 | 16 |
| Nominal Energy (kWh) | 25.6 | 51.2 | 81.92 |
| Discharge Voltage (V) | 216~288 | 475.2～ 633.6 | 691.2~921.6 |
| Rated Voltage (V) | 256 | 563.2 | 819.2 |
| Capacity Range (kWh) | 15.3~81.92 | ||
| Rated Working Current (A) | 50 | ||
| Max Charging Current (A) | 50 | ||
| Max Discharging Current (A) | 50 | ||
| General Parameter | |||
| Display | LED indicator | ||
| Communciation Interface | RS485/CAN | ||
| Dismensions Interface (W*D*H)(mm) | 483*550*1120 | 966*550*1120 | 1449*550*1120 |
| Weight (Kg) | 262 | 544 | 781 |
| Working Temperature Range (℃) | Charging: 0～50；Discharging: -20～55 | ||
| Operating Humidity Range | 5%RH～95%RH, No condensation | ||
| Altitude (m) | 3000 | ||
| Cooling Method | Natural Cooling | ||
| IP Rating | IP20 | ||
| Installation Method | Stackable bracket | ||
| Scalability | 3~16 | ||
| Battery Pack Parameter | |||
| Model | UX-5.1-HPB | ||
| Battery Pack Specifications | 51.2V/5.12kWh/100Ah | ||
| Life Cycles | 6000@90%DOD，25℃/0.5C | ||
| Dimensions (W*D*H)(mm) | 483*550*130 | ||
| Weight (Kg) | 44 | ||
