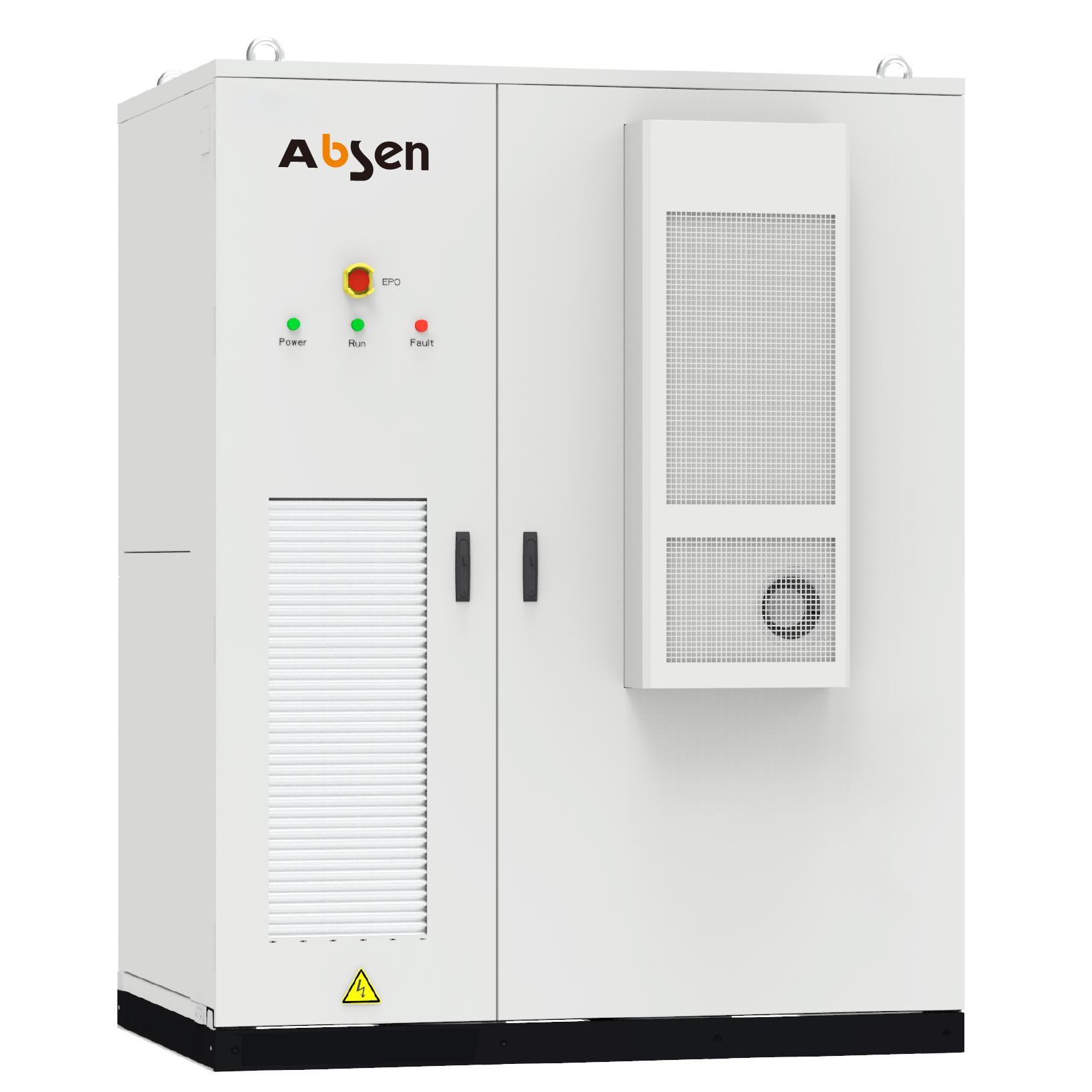

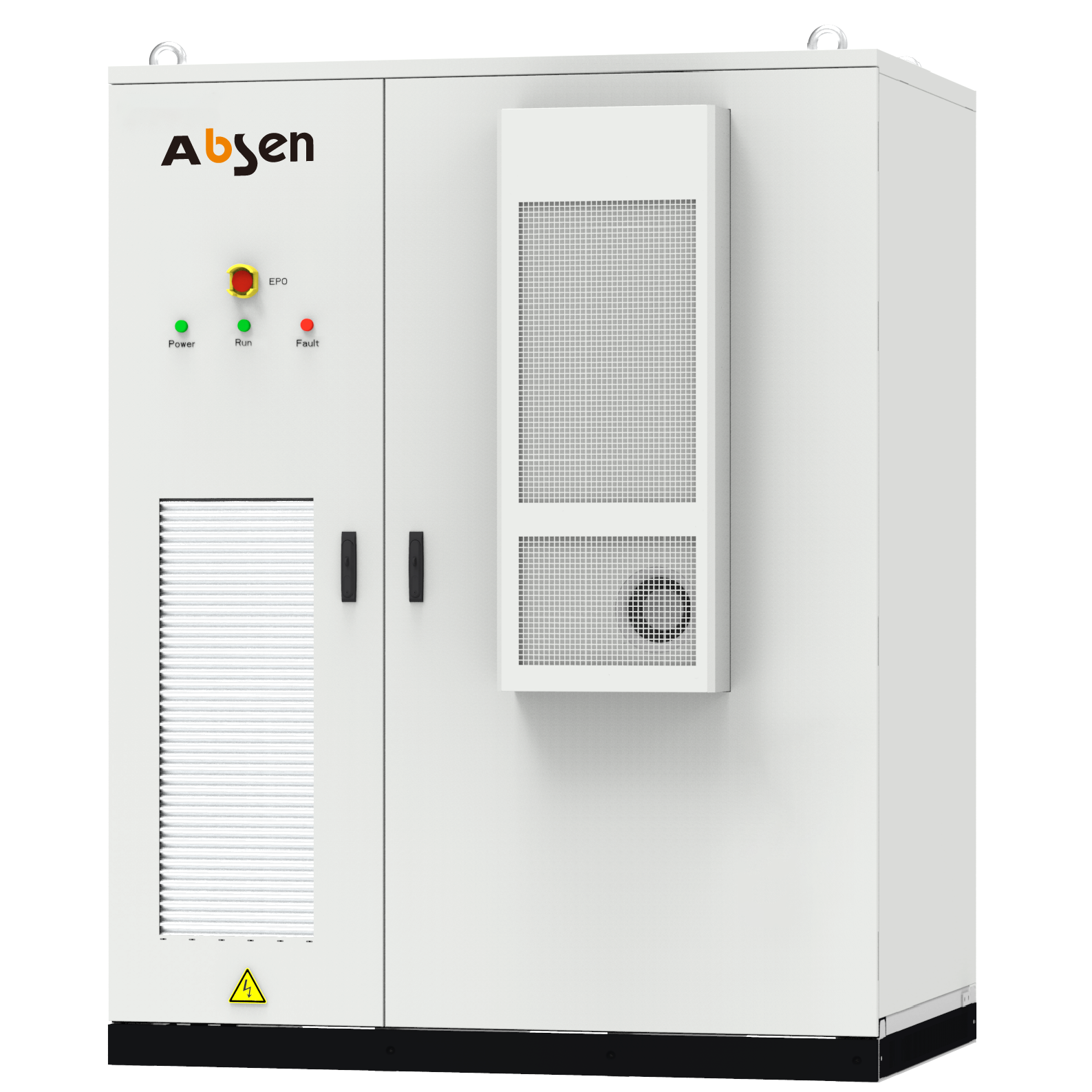

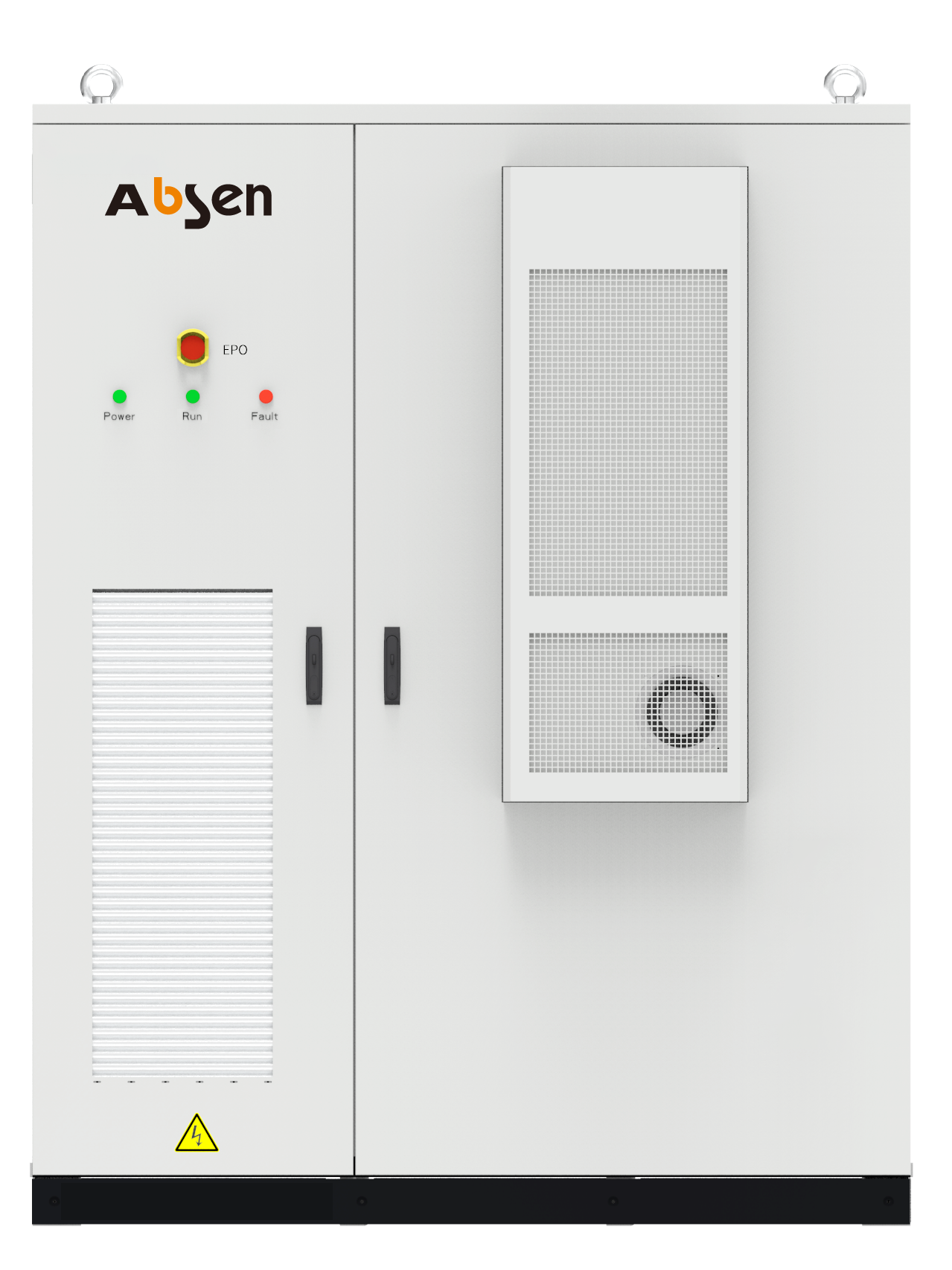

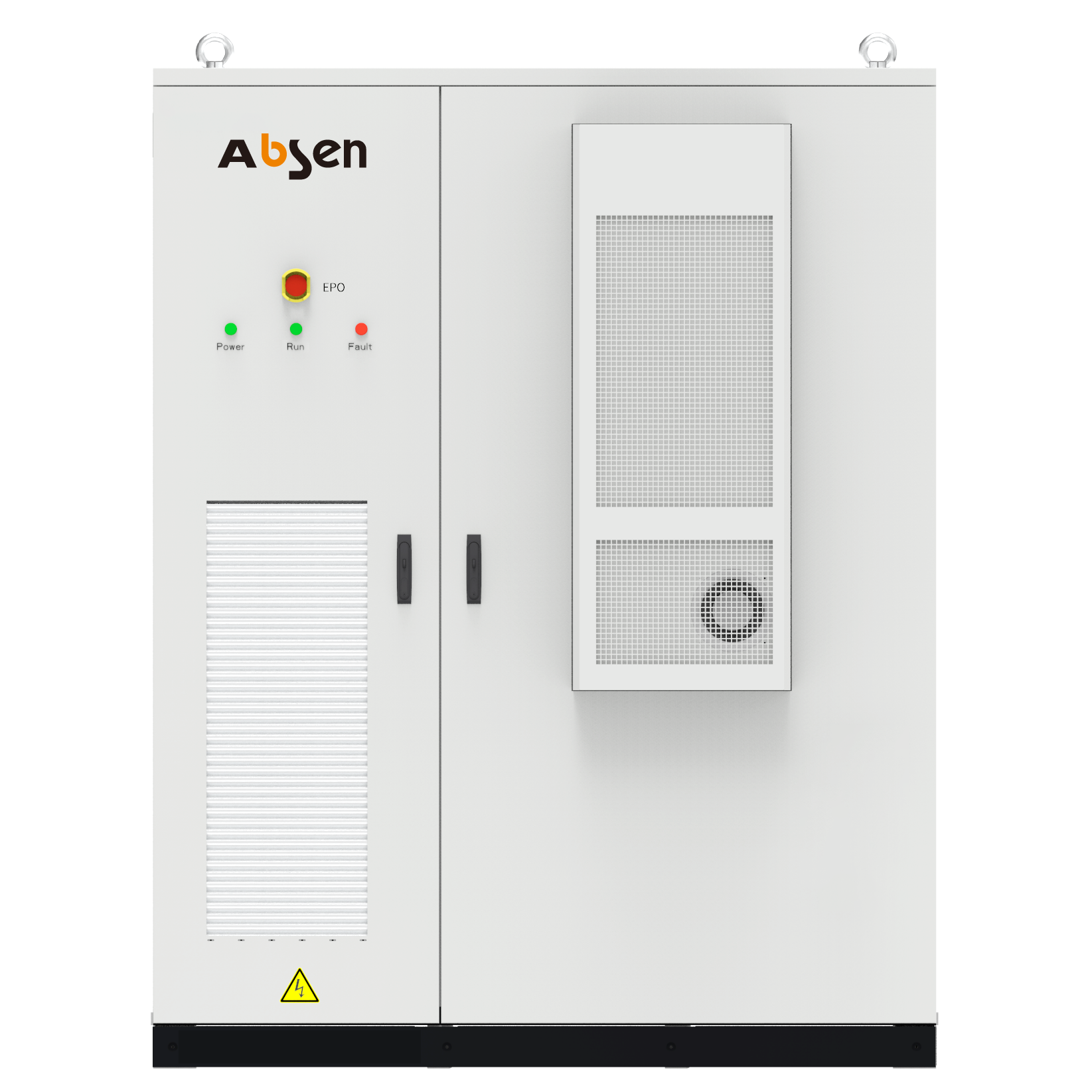

Air CoolingUnity HV2
72-235kWh
Rack-mounted
C&I Battery
| Model | Cube 225-Y |
| PV (DC) | |
| Max PV Input Power (kW) | 220 |
| PV Input Voltage Rate (V) | 250~607 |
| MPPT | 4 |
| Battery (DC) | |
| Rated Battery Energy (kWh) | 225 |
| Rated System Voltage (V) | 716.8 |
| Battery Type | LFP |
| Battery Capacity (Ah) | 314 |
| Series of Battery | 1P*32S*7S |
| AC Output | |
| Rated AC Power (kW) | 100 |
| Rated AC Current (A) | 144 |
| Rated AC Voltage | 400V, 3P+N+PE, 50/ 60Hz |
| THDi | <3% (rated power) |
| PF | -1 leading to+1 lagging |
| General Data | |
| Protection Level | IP55 |
| Operating Temperature (℃) | -25~60(Derating above 45) |
| Altitude (m) | 3000 (>3000 derating) |
| Dimensions (W*D*H)(mm) | RS485/ CAN 2.0/ Ethernet/ dry contact |
| Dimension (W*D*H)mm | 1700*1200*2300 |
| Fire Protection System | Aerosol |
| Cooling Method | Air conditioning cooling |
| Weight (approx.)(kg) | 3300 |
| Certificates | UN38.3, IEC62619, IEC/EN62477, EN61000, CEI016, IEC62116/IEC61727, G99, EN50549, VDE4110, NRS 097 etc. |
