Low VoltagePile S 60/51
5-15kWh All-in-one
Residential ESS
All-in-one Residential
Energy Storage System

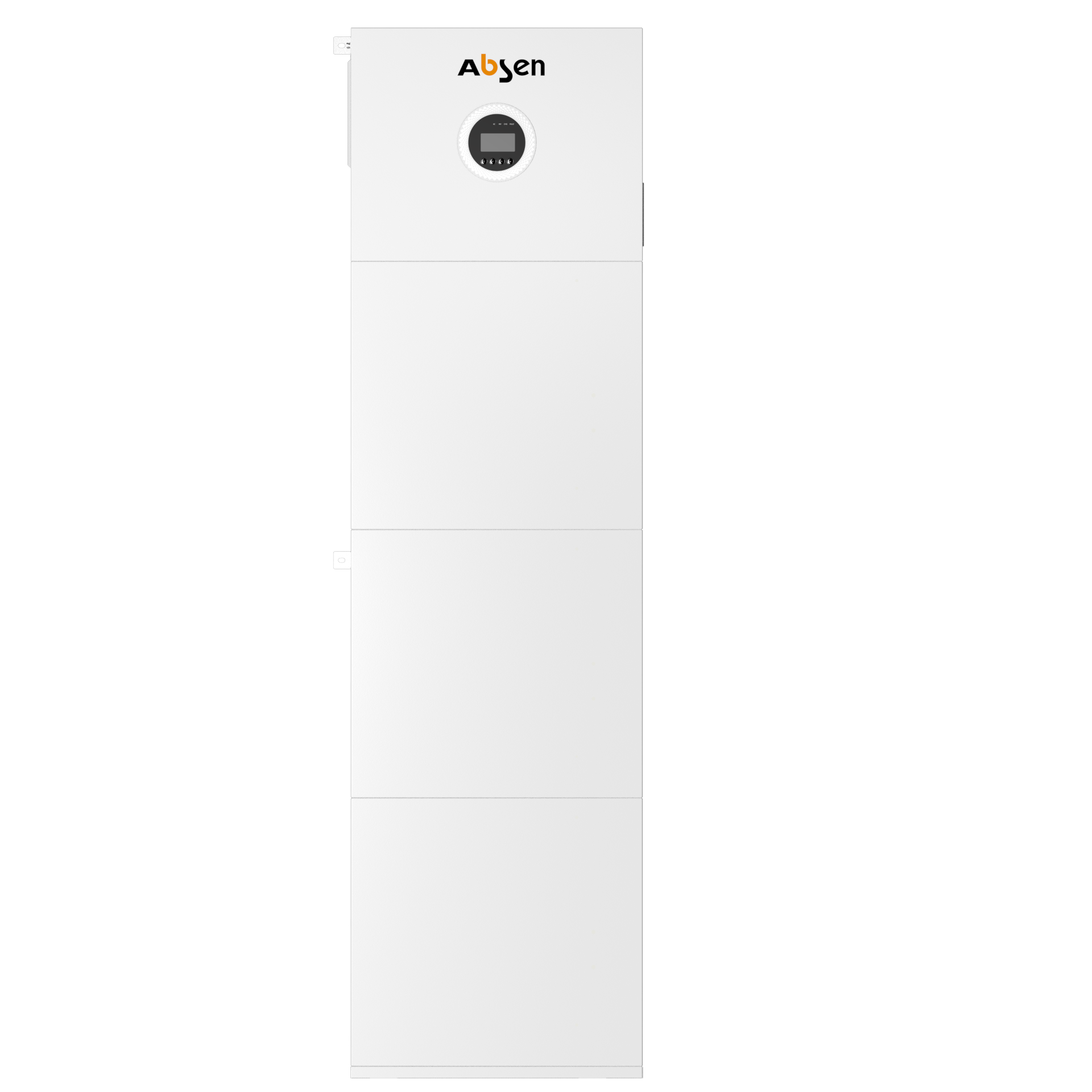

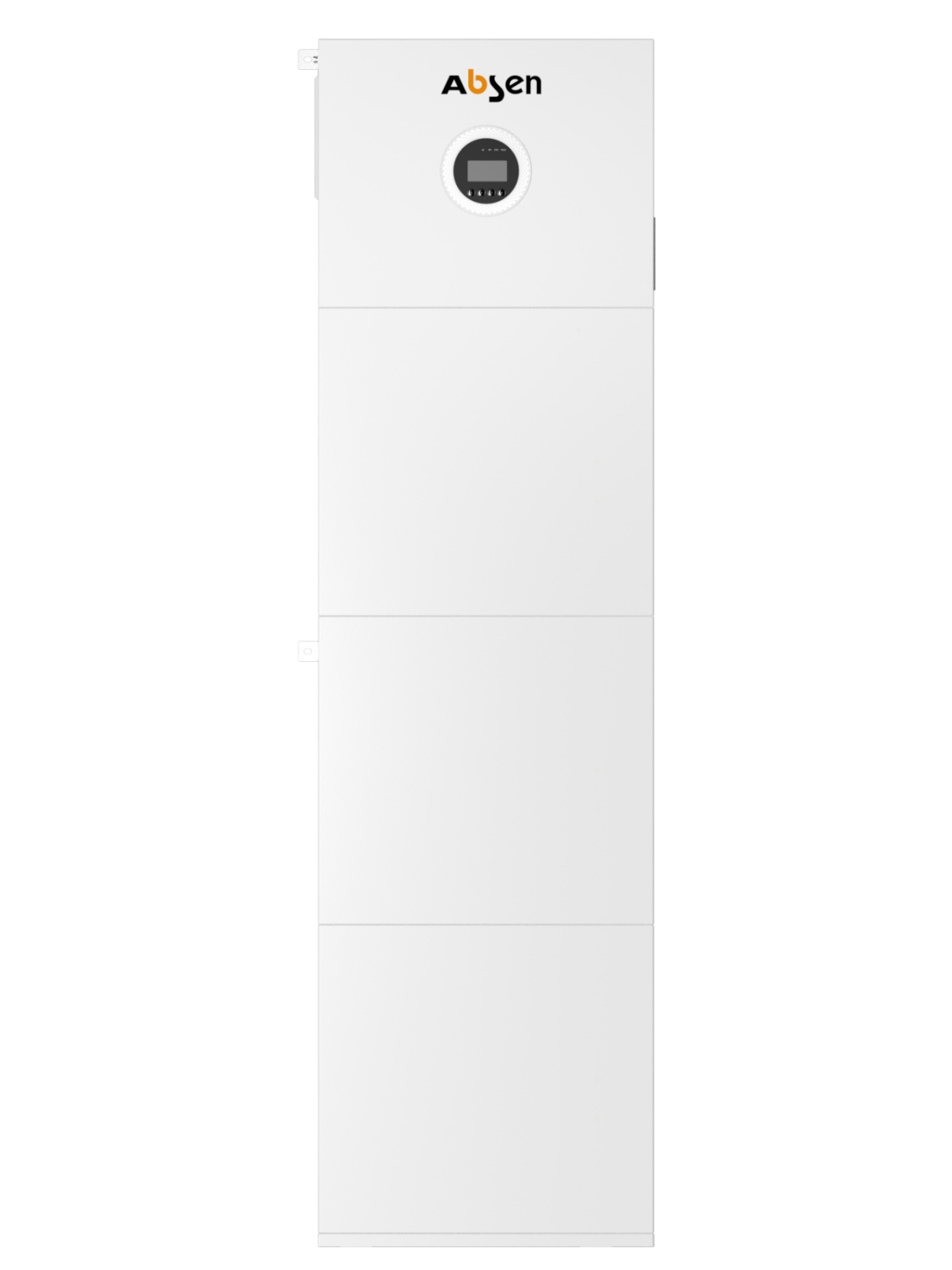

Pile S 60/51
This product is an upgraded version of the traditional all-in-one inverter. Based on the "multi-function integration" of the traditional model, it adds the capability of "modular stacking expansion". It enables flexible expansion of power and capacity, retaining the advantages of all-in-one inverters such as "easy installation and high integration" while solving the pain point of traditional all-in-one inverters—fixed power that cannot adapt to the growth of electricity demand. It is widely used in home electricity upgrade and progressive power supply systems in remote areas.
Feed-in to Grid
Diesel Generator Connectable
Liquid Crystal Display
Leading Brand Battery Cells
Benefits

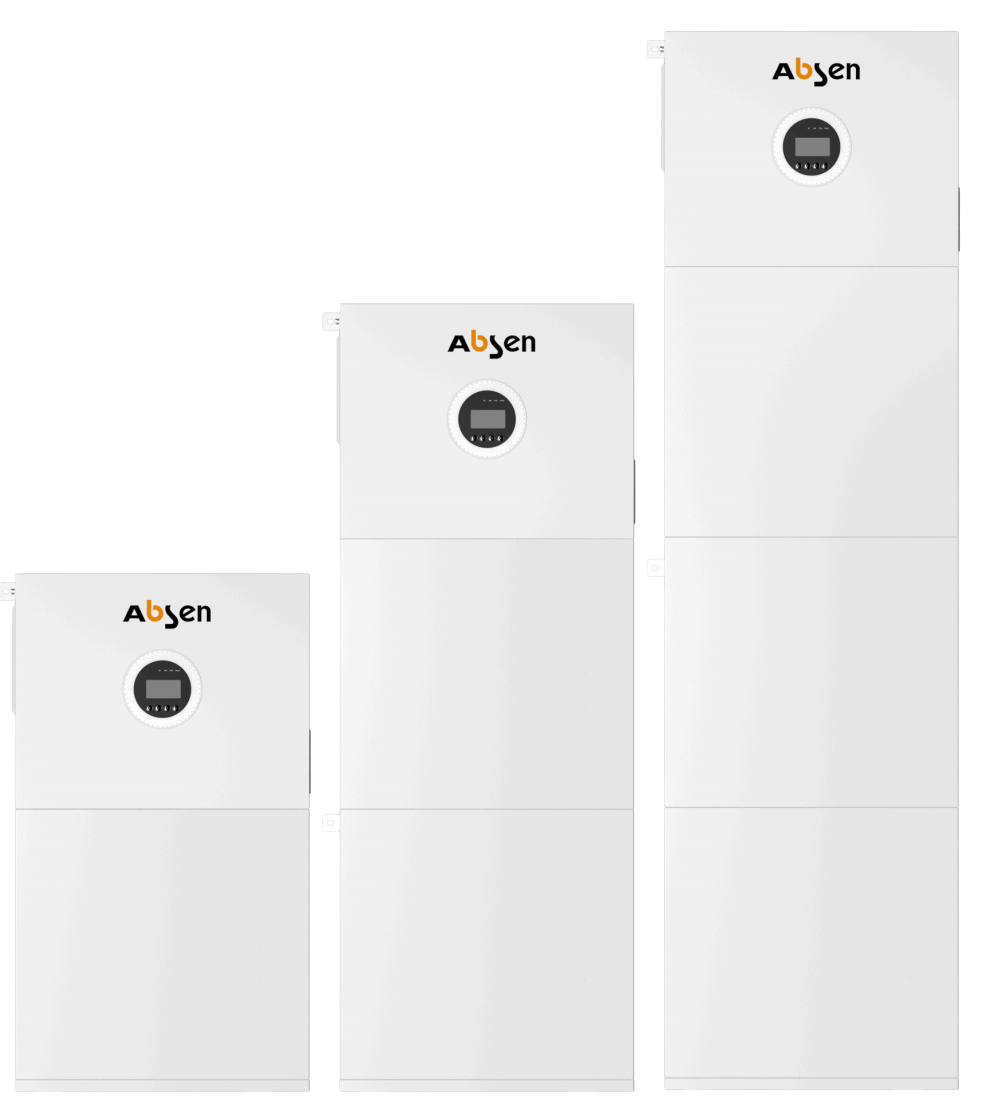

Module Design
Up to 3 units for expansion, quick installation, space-saving for installation.
Exceptional Performance
Built-in 120A solar charger, wide PV input voltage range 60-500V, slim design
Safety and Reliability
Intelligent cells balancing, current-limiting function, multiple protection
Smart and Easy Operation
WIFI monitoring, smart battery charge design to optimize battery life
Parameters



ModelPile S 60/51
System Parameter
Qty. of Battery Modules123
Battery Capacity (kWh)5.1210.2415.36
Rated Power (W)440060006000
Ingress ProtectionIP21
Operating Temperature ()0-55
Relative Humidity20%-95% (Non-condensing)
Net Weight (kg)5597139
Dimensions (W*D*H)(mm)500*150*880500*150*1340500*150*1800
Max. Operating Altitude (m) 3000 (Derating above 1000)
DisplayLCD
CommunicationRS485/CAN/WIFI
Inverter Module
ModelPXS-60/51-LP1
Rated Batteery Voltage (V)51.2
Max. PV Input Power (W)9000
Max. Open Voltage (VDC)500
MPPT Input Voltage Range (VDC)60-450
Number of MPPT Trackers1
Rated AC Current (A)26
Max. PV Intput Current (A)27
Rated Grid Voltage (VAC)208/220/230/240; L+N+PE
Grid Voltage Range (V)90~280±3 (APP/GEN mode); 170~264±3 (UPS mode)
Rated AC Power (W)440060006000
Peak Output Power (Off-grid)(W)500060006000
Switch Time (ms)10(APP/UPS mode); 20(GEN mode)
Max. Efficiency (Battery Mode)94%@48VDC
Net Weight (kg)11
Dimensions (W*D*H)(mm)500*150*400
Battery Module
ModelPXS-60/51-LPB
Nominal Voltage (V)51.2
Voltage Range (V)43.2-58.4
Capacity (A)100200300
Nominal Charge/Discharge Current (A)50/100100/100100/100
Max Charge/Discharge Current100/100 140/140 140/140
Battery TypeLiFePO
Net Weight (kg)4284126
Dimensions (W*D*H)(mm)500*150*460500*150*920500*150*1380
