Air CoolingUnity HV2
72-252kWh
Stacked C&I Battery

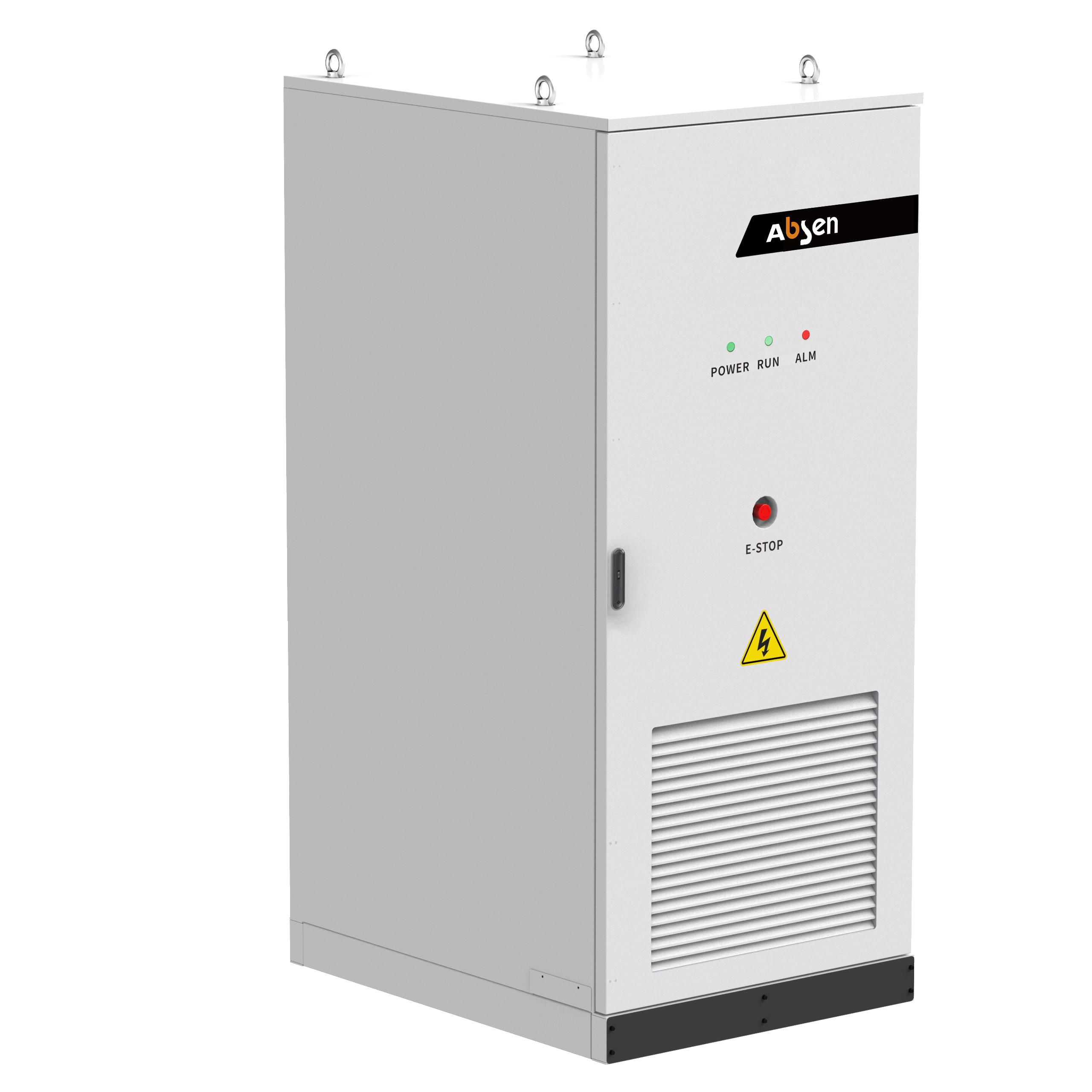

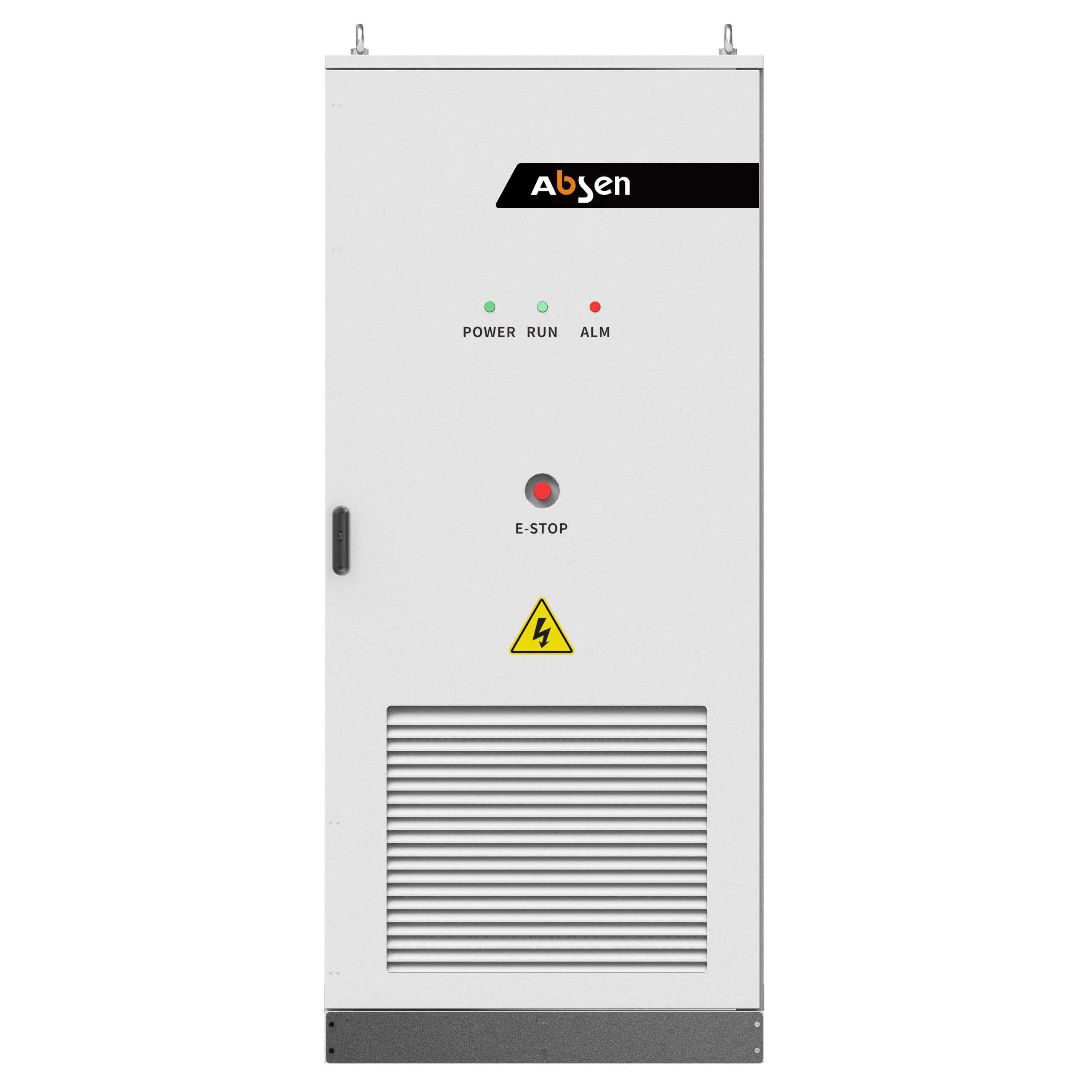

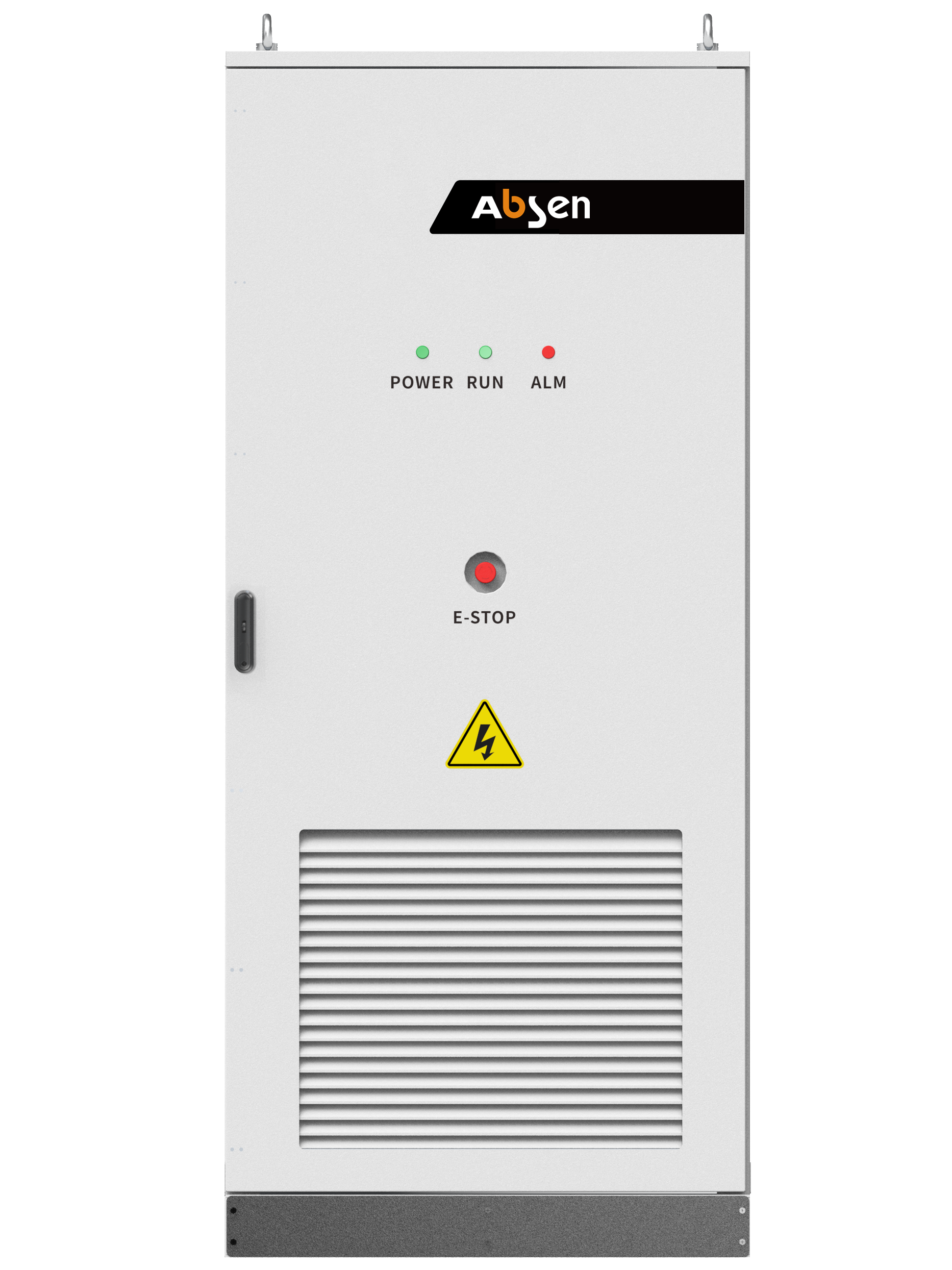

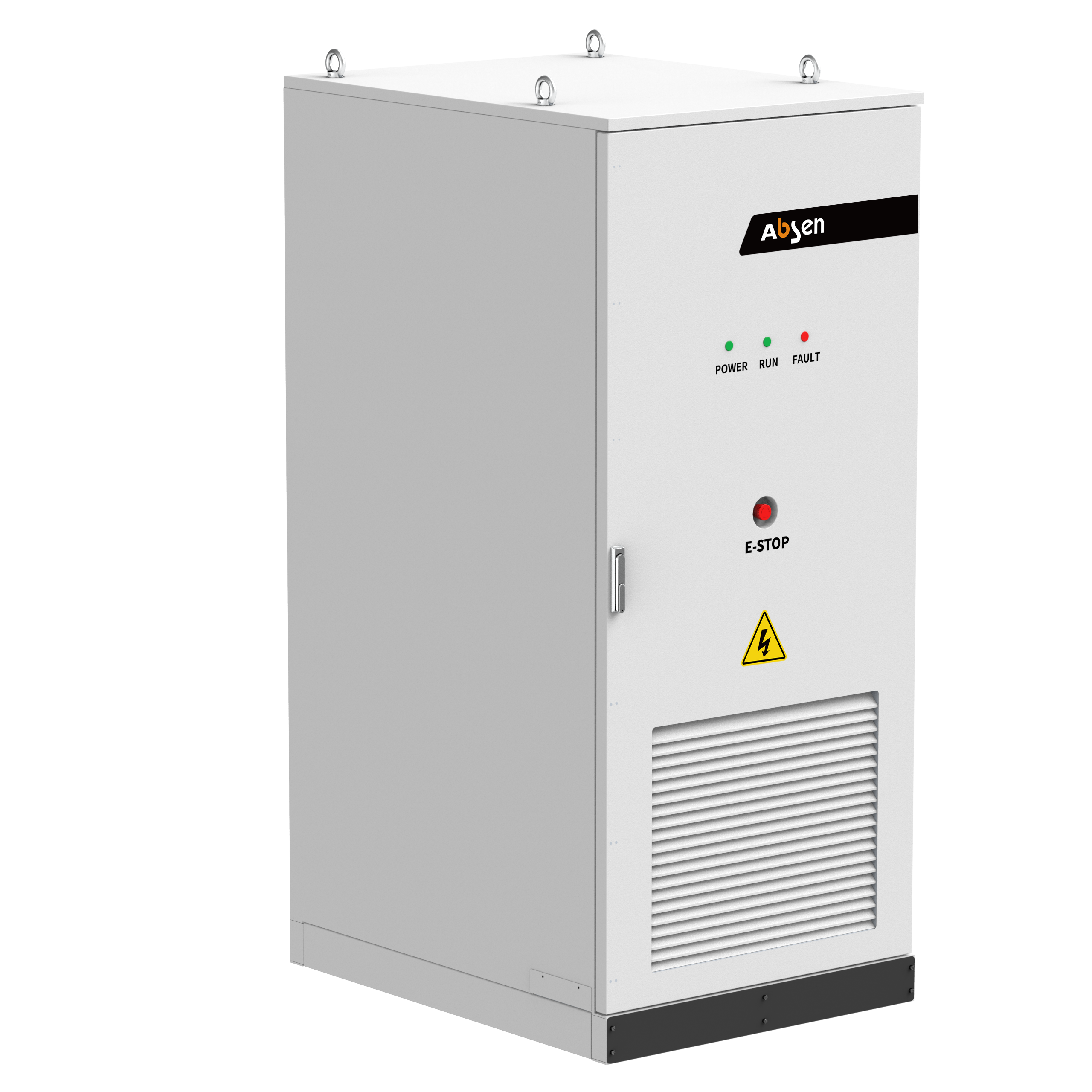

| Model | Cube261-Plus |
| System Parameter | |
| Maximum system efficiency | ≥90% |
| Charge - Discharge Rate | ≤0.5P |
| Working Temperature (℃) | -30-55 |
| Humidity (RH) | 0%~95% |
| Cooling Method | Liquid cooling |
| IP Rating | IP55 |
| Corrosion Resistance Level | C4 |
| Noise (Rated Operating Condition) | 70dB@1m |
| Altitude (m) | ≤3000 (>2000 derating) |
| Fire Protection System | PACK-level + Cluster-level aerosols |
| Communication | 4G/RS485/Ethernet/Wi-Fi (optional) |
| System Dimensions (W*D*H)(mm) | 1600*1300*2350 |
| Weight (kg) | 3900 |
| Certification | IEC61000, IEC62619, UN38.3 |
| Battery Parameter | |
| Battery Type | LFP3.2V/314Ah |
| System Battery Configuration | 1P416S |
| Battery System (kWh) | 261 |
| Battery Voltage Range (VDC) | 728~936 |
| Endurance Cycle | 8000, 70% SOH (90%DOD,25℃) |
| AC Side Parameters | |
| Rated Output Power (kW) | 125 |
| Grid Voltage Range | 300~440 |
| Wiring Mode | 3L+N+PE |
| Frequency (Hz) | 50/60 |
| Rated Charge/Discharge Current (A) | 182 |
| Power Factor | >0.99 (-1 leading - 1 lagging) |
| THDi | <3% (Rated Power) |

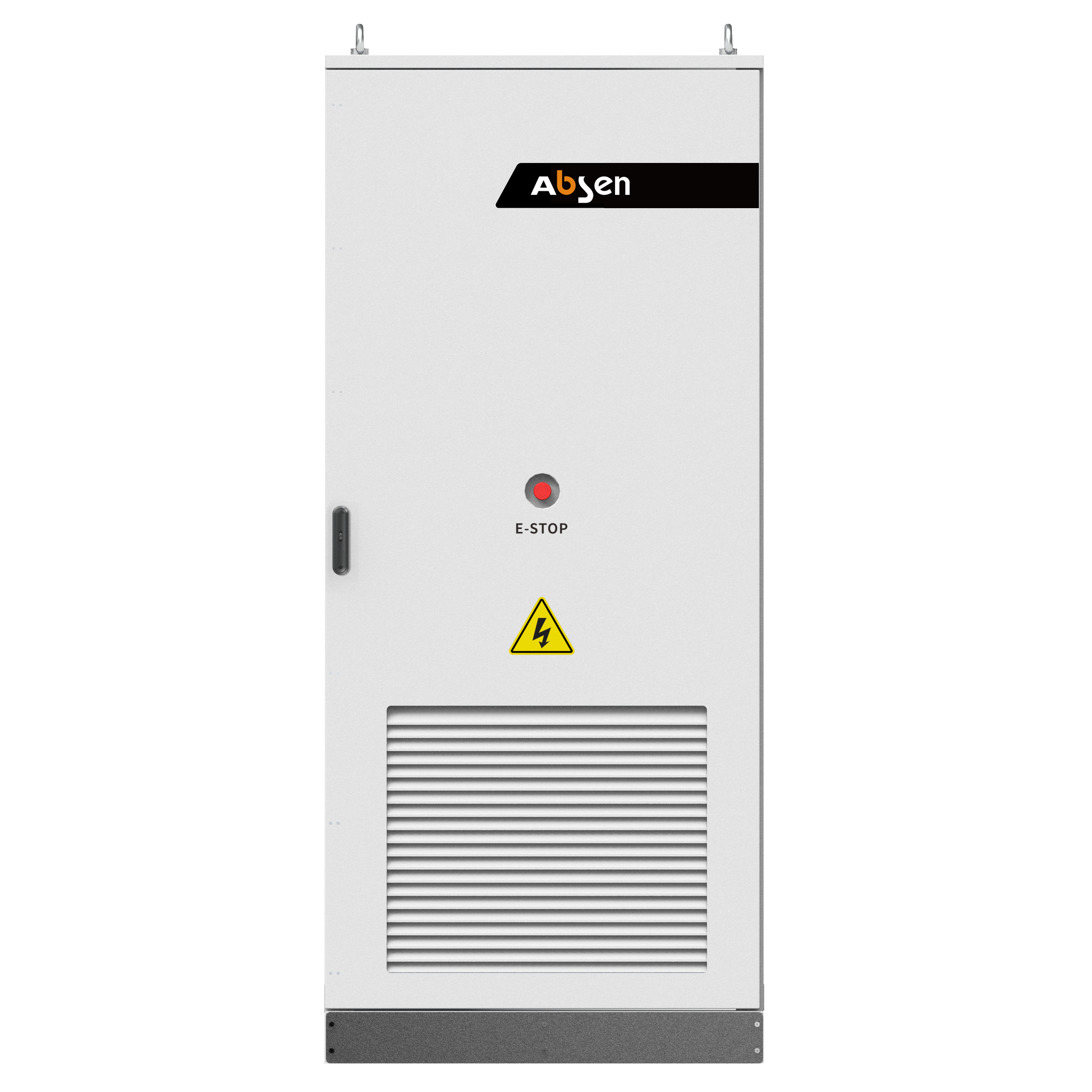

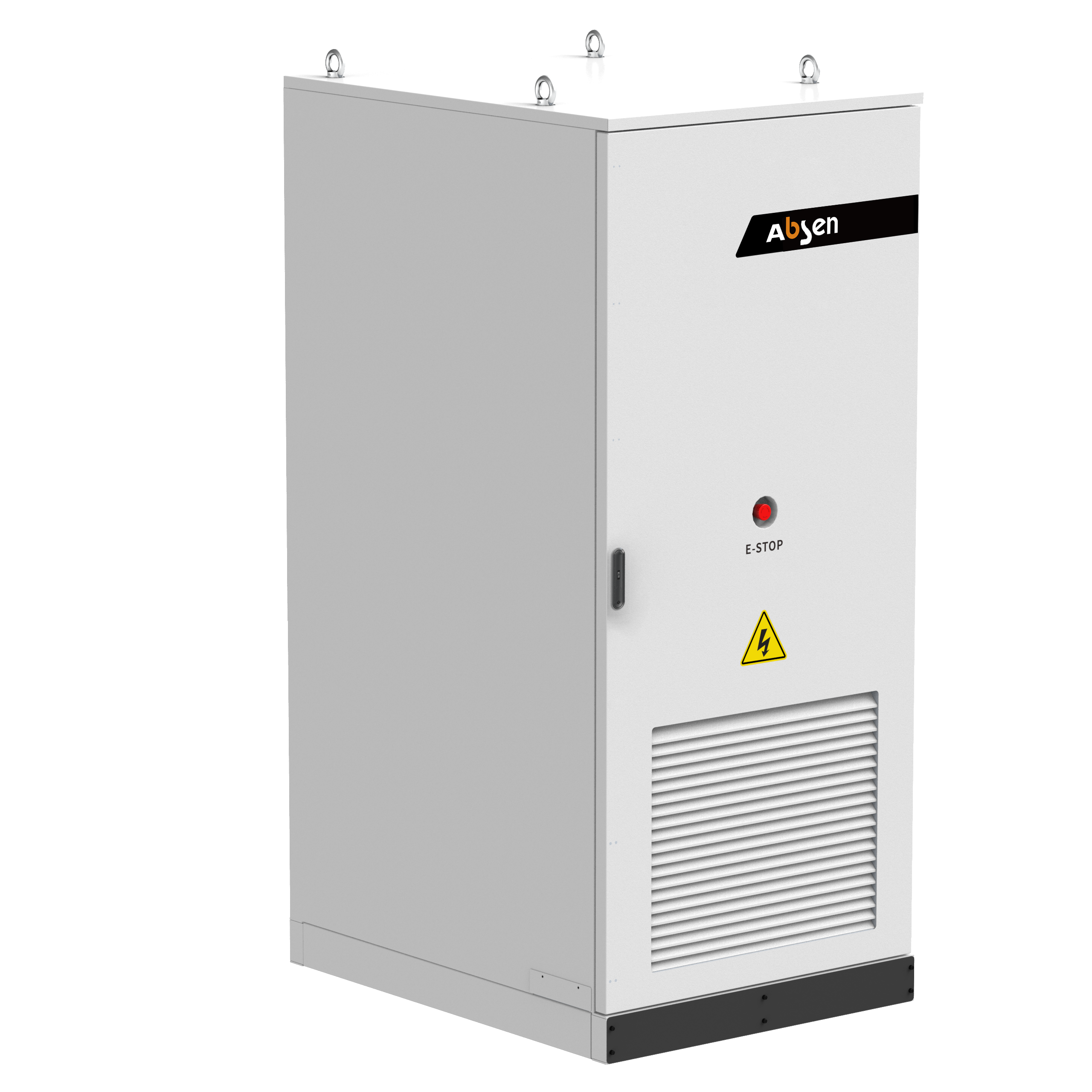

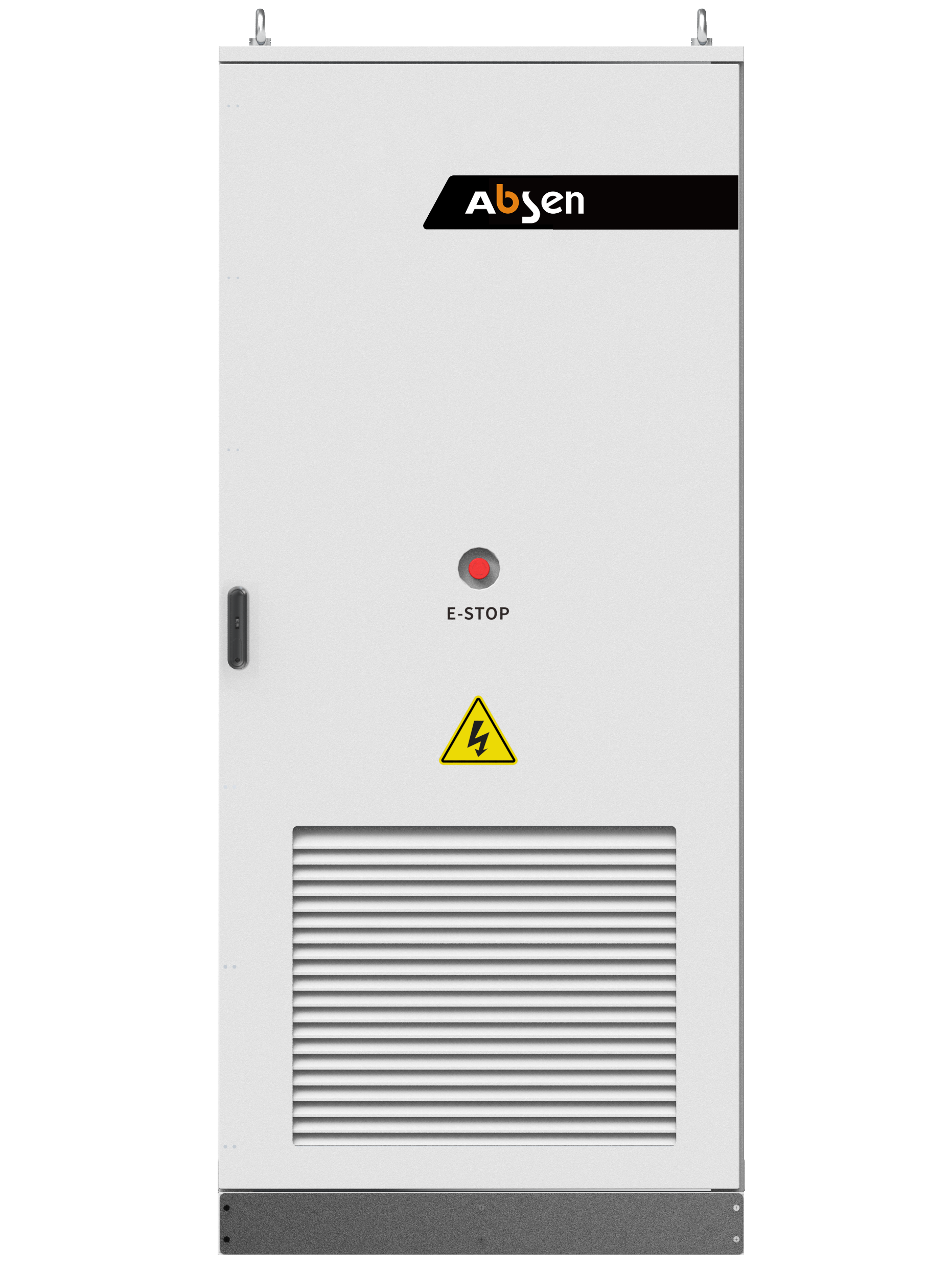

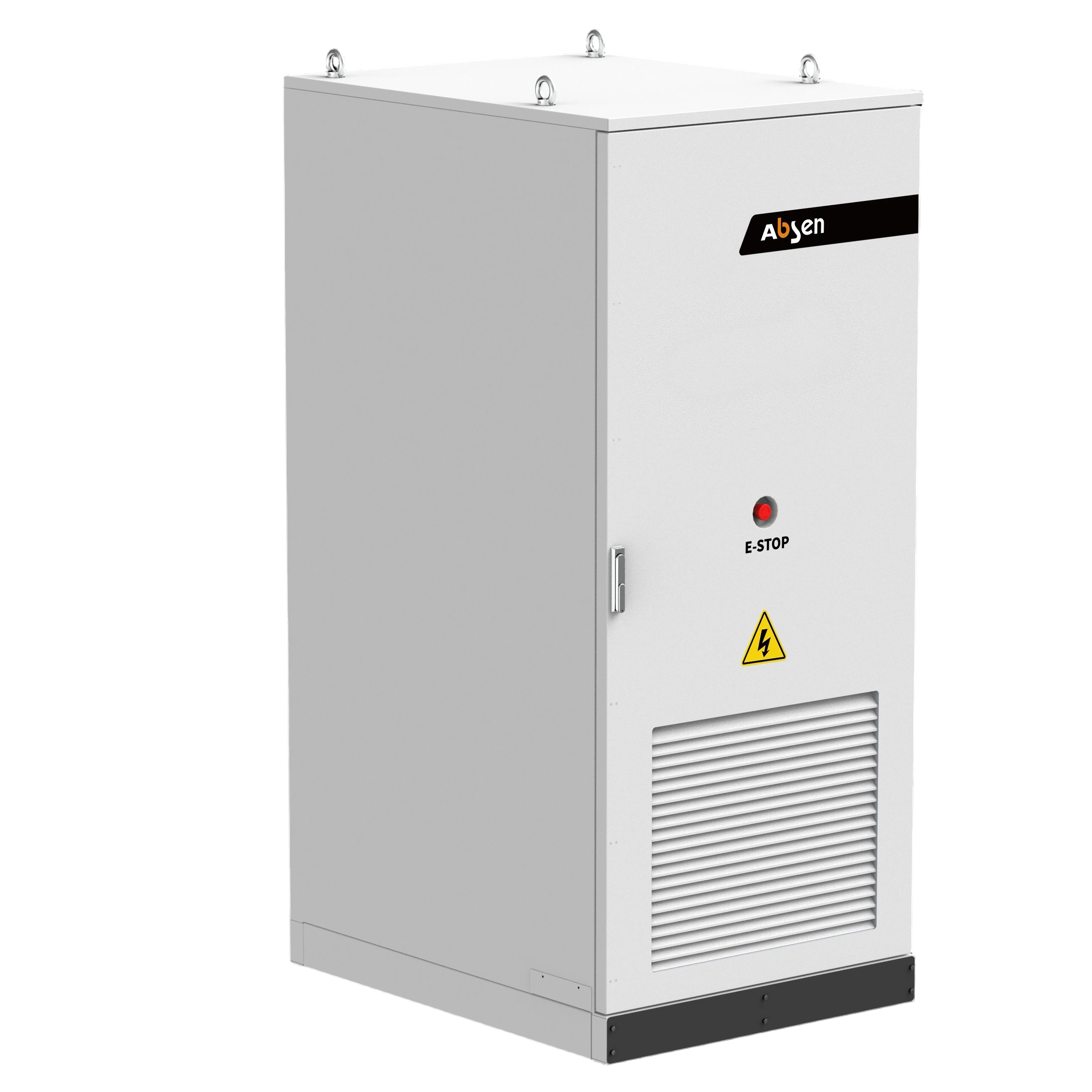

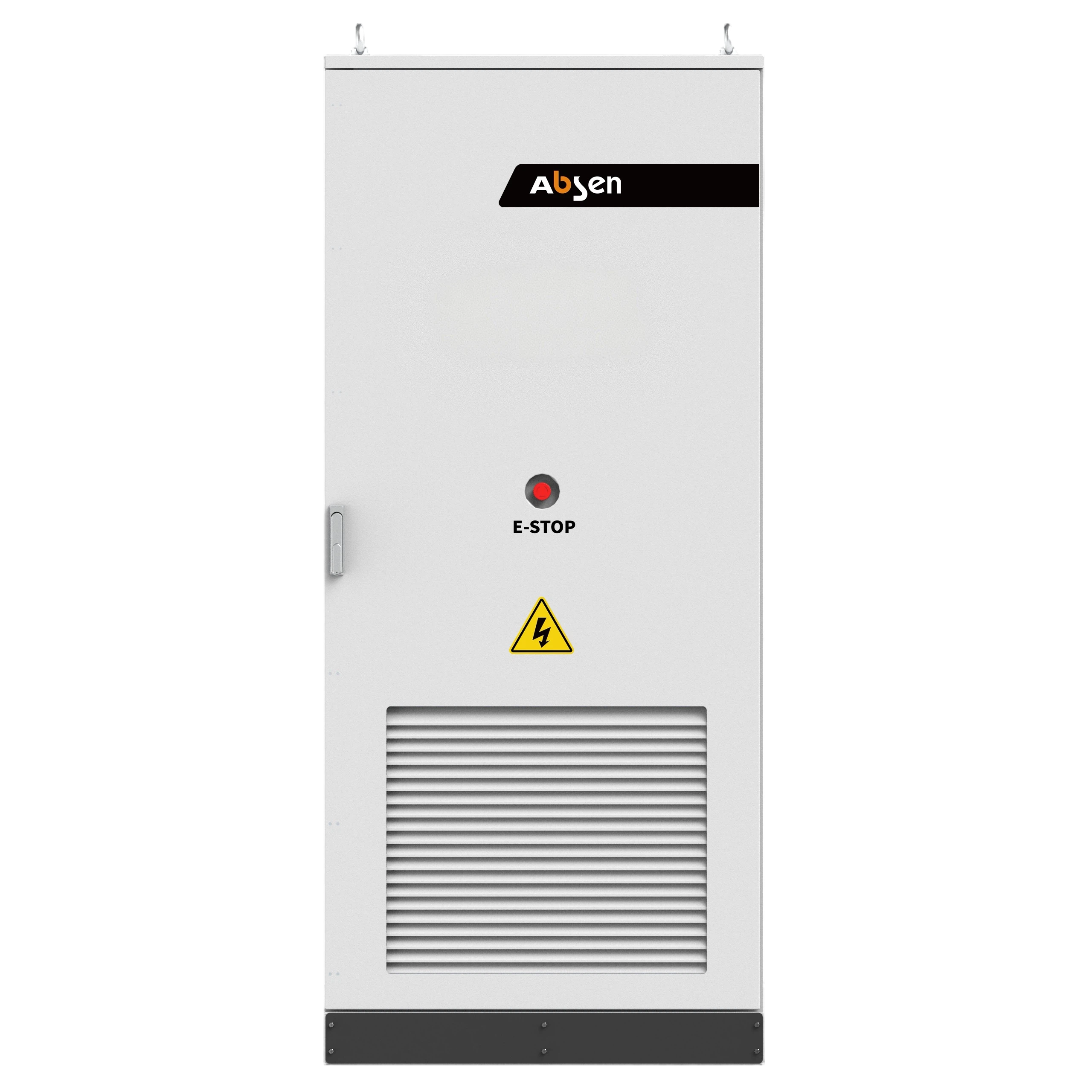

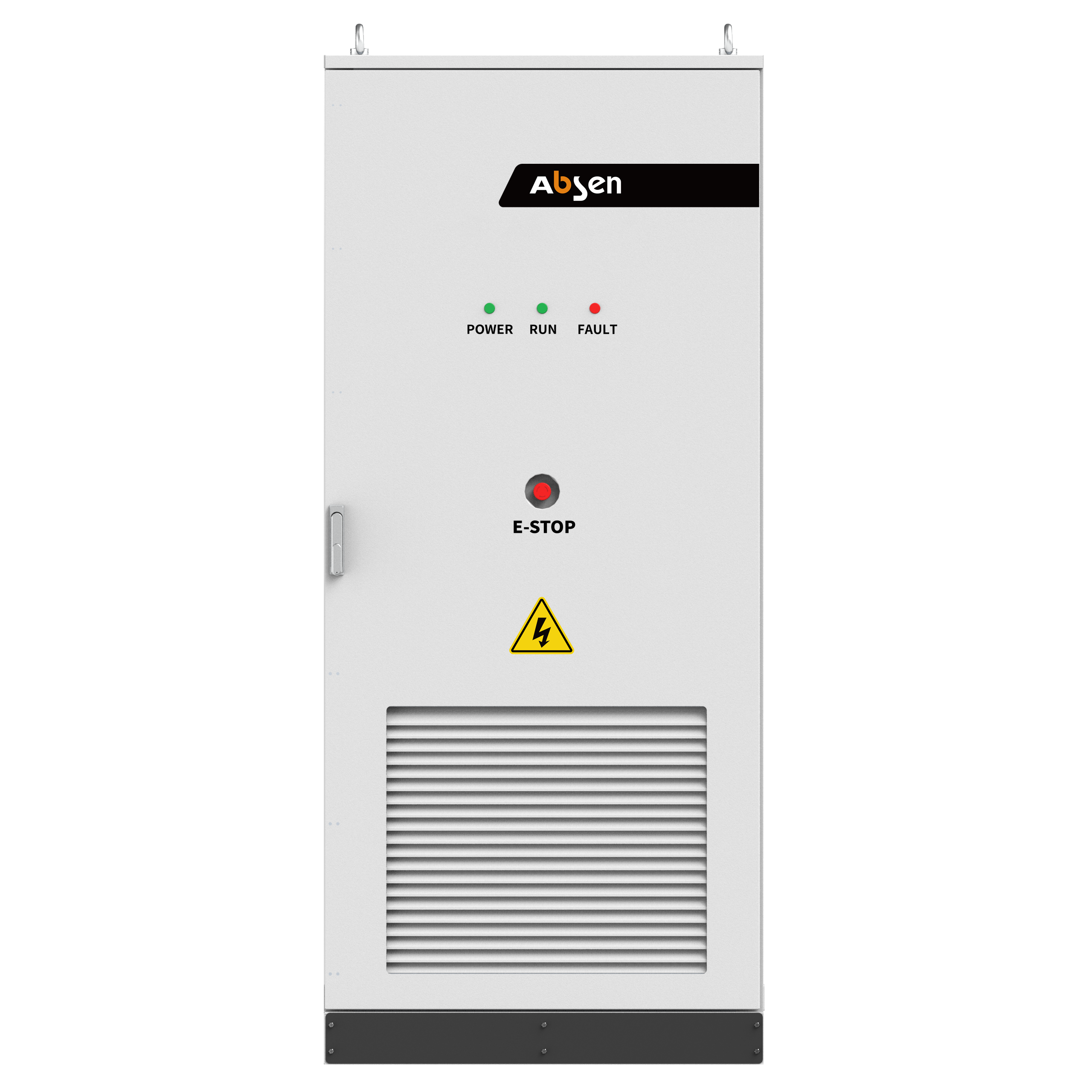

| Model | Cube261DC-Plus |
| System Parameter | |
| Maximum System Efficiency | ≥90% |
| Working Temperature (℃) | -30~55 |
| Humidity (RH) | 5%~95% |
| Cooling Method | Liquid cooling |
| IP Rating | IP55 |
| Corrosion Resistance Level | C4 |
| Noise (under rated operating conditions) | 70dB@1m |
| Altitude(m) | ≤3000m (>2000m Derating) |
| Fire Protection System | PACK-level + Cluster-level aerosols |
| Cloud Plat | APP+Web |
| Communication | Ethernet |
| System Dimensions (W*D*H)(mm) | 1000*1300*2300 |
| Weight (kg) | 2430 |
| Certification | IEC61000, IEC62619, UL9540A, UN38.3 |
| Inverter Matching | Solis/Deye |
| Battery Parameter | |
| Battery Type | LFP3.2V/314Ah |
| System Battery Configuration | 1P260S |
| Battery System (kWh) | 261 |
| Battery Voltage Range (VDC) | 728~936 |
| Endurance Cycle | 8000, 70% SOH (90%DOD,25℃) |
