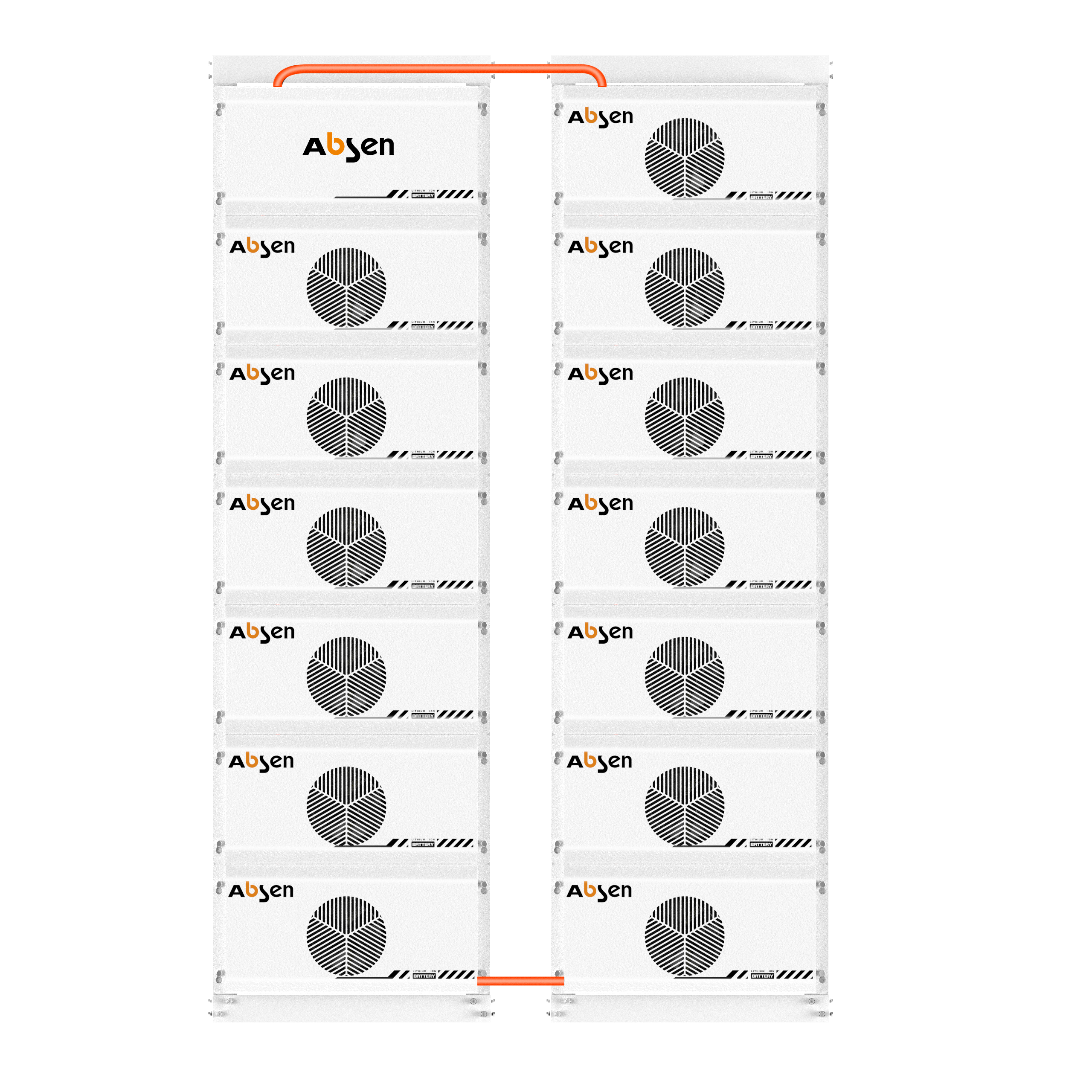

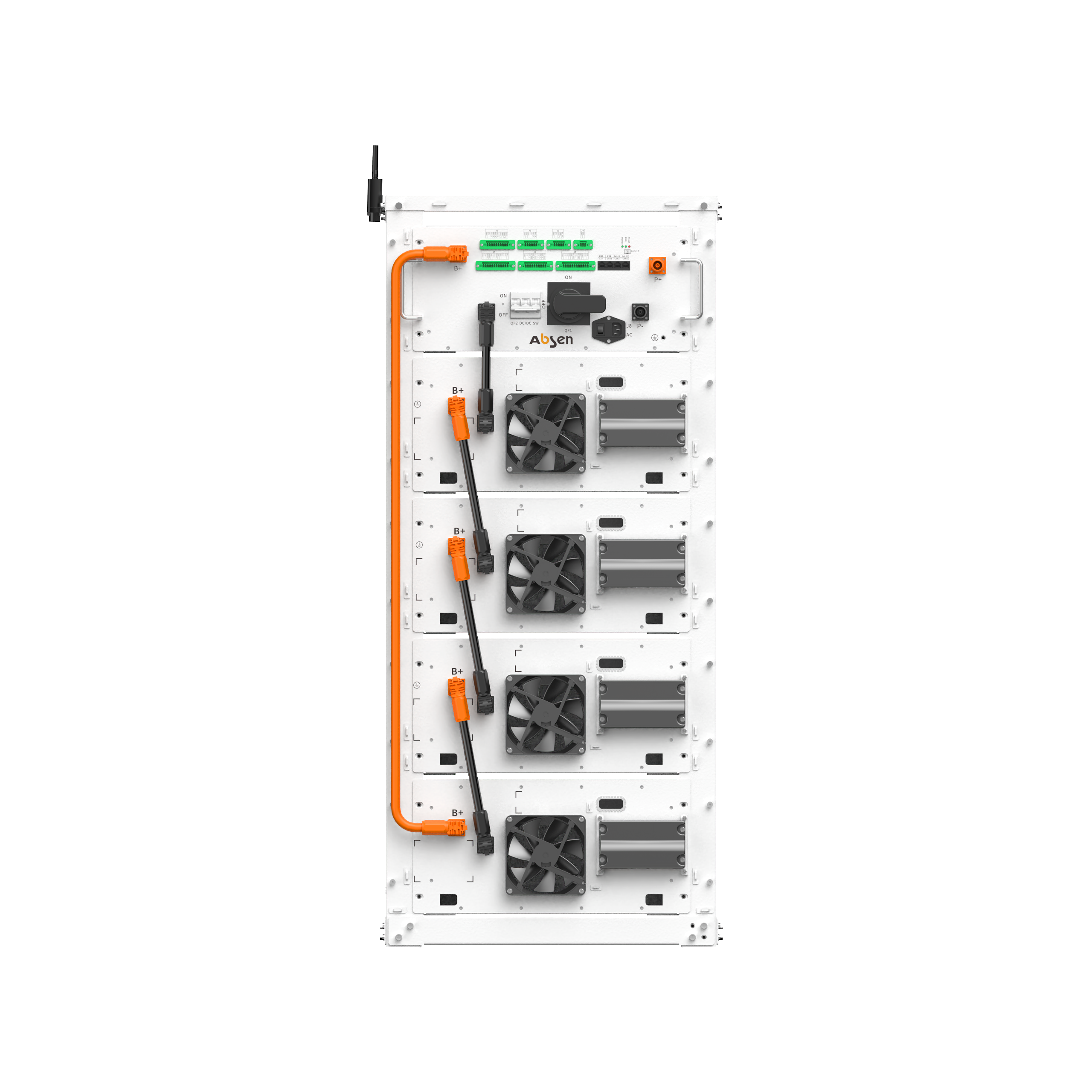

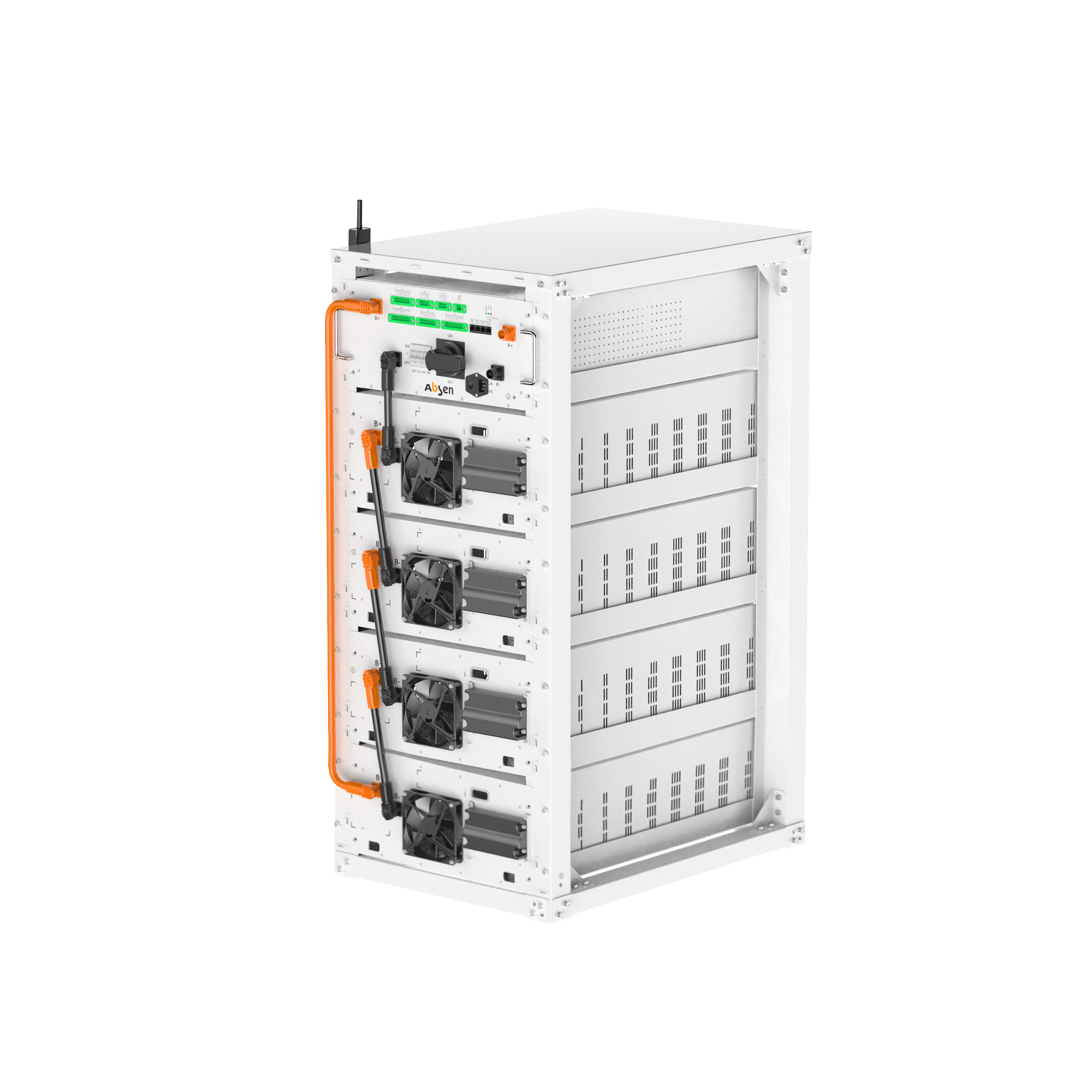

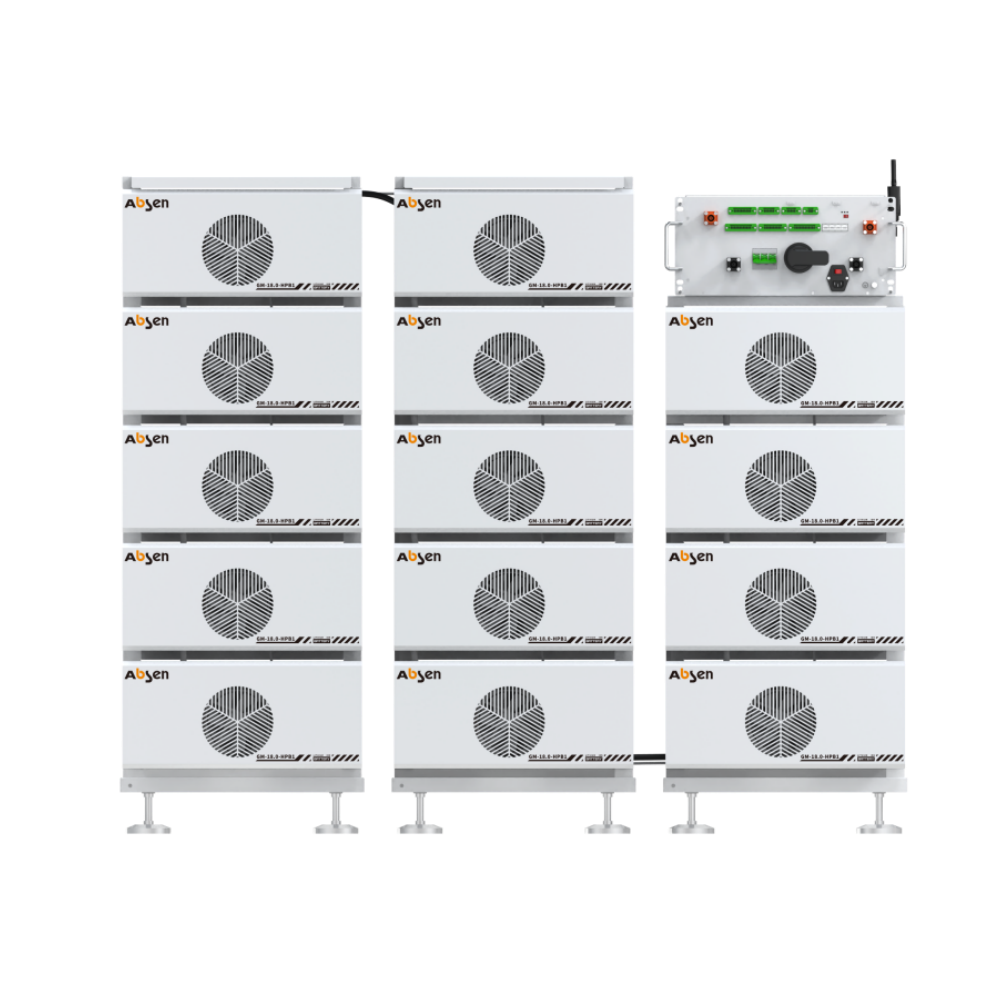

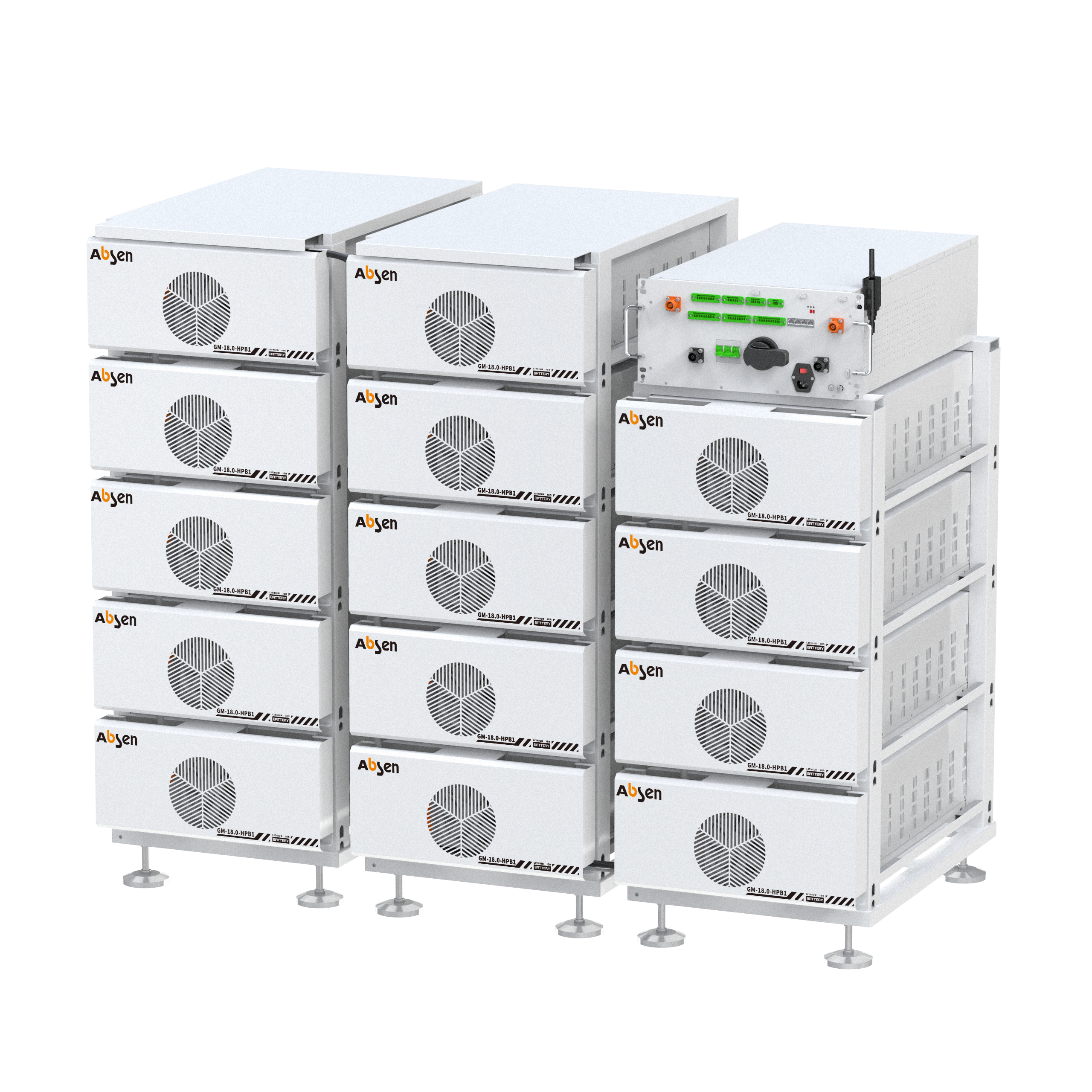

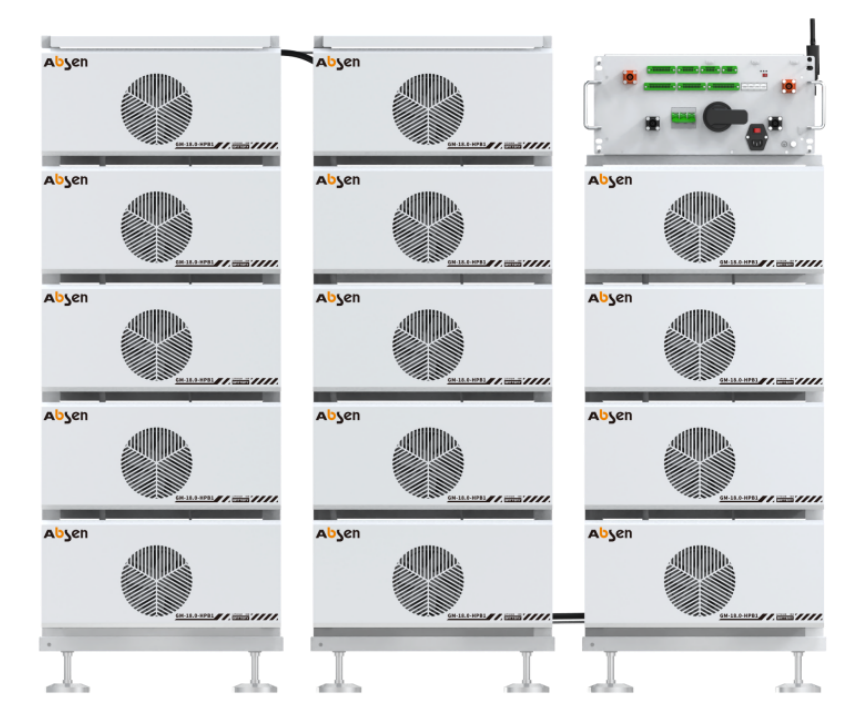

Air CoolingUnity HV2
72-253kWh
Stacked C&I Battery
| Model | UX-72.3-HPB | UX-90.4-HPB | UX-108.5-HPB | UX-126.6-HPB | UX-144.6-HPB | UX-162.7-HPB |
| Batteries Configuration | 4 units | 5 units | 6 units | 7 units | 8 units | 9 units |
| System Battery Configuration | 1P72S | 1P90S | 1P108S | 1P126S | 1P144S | 1P162S |
| Battery voltage range (VDC) | 201.6～259.2 | 252～324 | 302.4～388.8 | 352.8～453.6 | 403.2～518.4 | 453.6～583.2 |
| Battery System (kWh) | 72.32 | 90.4 | 108.48 | 126.6 | 144.6 | 162.7 |
| Max. Matched Inverter Power (kW) | 30 | 40 | 50 | 60 | 70 | 80 |
| Model | UX-180.8-HPB | UX-198.9-HPB | UX-217.0-HPB | UX-235.1-HPB | UX-253.2- HPB | |
| Batteries Configuration | 10 units | 11 units | 12 units | 13 units | 14 units | |
| System Battery Configuration | 1P180S | 1P198S | 1P216S | 1P234S | 1P252S | |
| Battery voltage range (VDC) | 504～648 | 554.4～712.8 | 604.8～777.6 | 655.2～842.4 | 705.6～907.2 | |
| Battery System (kWh) | 180.8 | 198.9 | 217 | 235.1 | 253.2 | |
| Max. Matched Inverter Power (kW) | 90 | 100 | 110 | 115 | 125 | |
| System Parameter | ||||||
| Comm. Method with PCS | CAN2.0 | |||||
| IP Rating | IP20 | |||||
| Cooling Method | Intell. Forced Air Cooling | |||||
| Working Temperature (℃) | -20-55 | |||||
| Humidity (RH) | 0-95% | |||||
| Recommend Depth of Discharge | 90% | |||||
| Noise (dB) | ＜70 | |||||
| Altitude (m) | 3000 | |||||
| Cloud Plat | APP+Web | |||||
| Certificates | IEC62619、EN61000、UN38.3 | |||||
| Compatible Inverter List | Solis, Deye, Growatt, Fox, Sinexcel, Afore... | |||||
| Battery Pack | ||||||
| Battery Pack Specifications | 57.6V/18.08kWh/314Ah | |||||
| Life Cycles | 8000, 70% SOH (90%DOD, 25℃) | |||||
| Fire Protection System | Aerosol | |||||
| Dimensions (W*D*H)(mm) | 483*825*235 | |||||
| Weight (kg) | 126±3 | |||||
