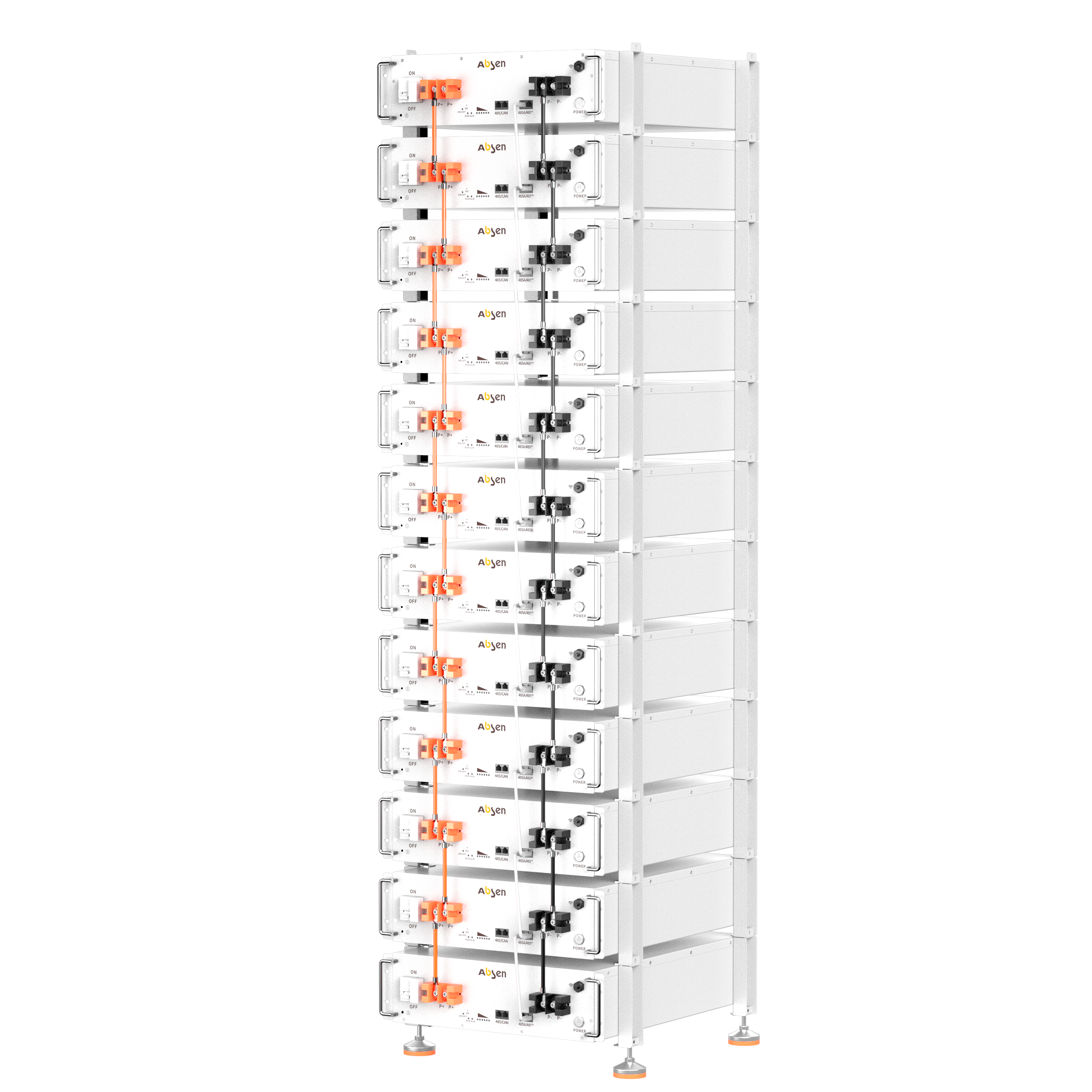

Air CoolingUnity HV2
72-253kWh

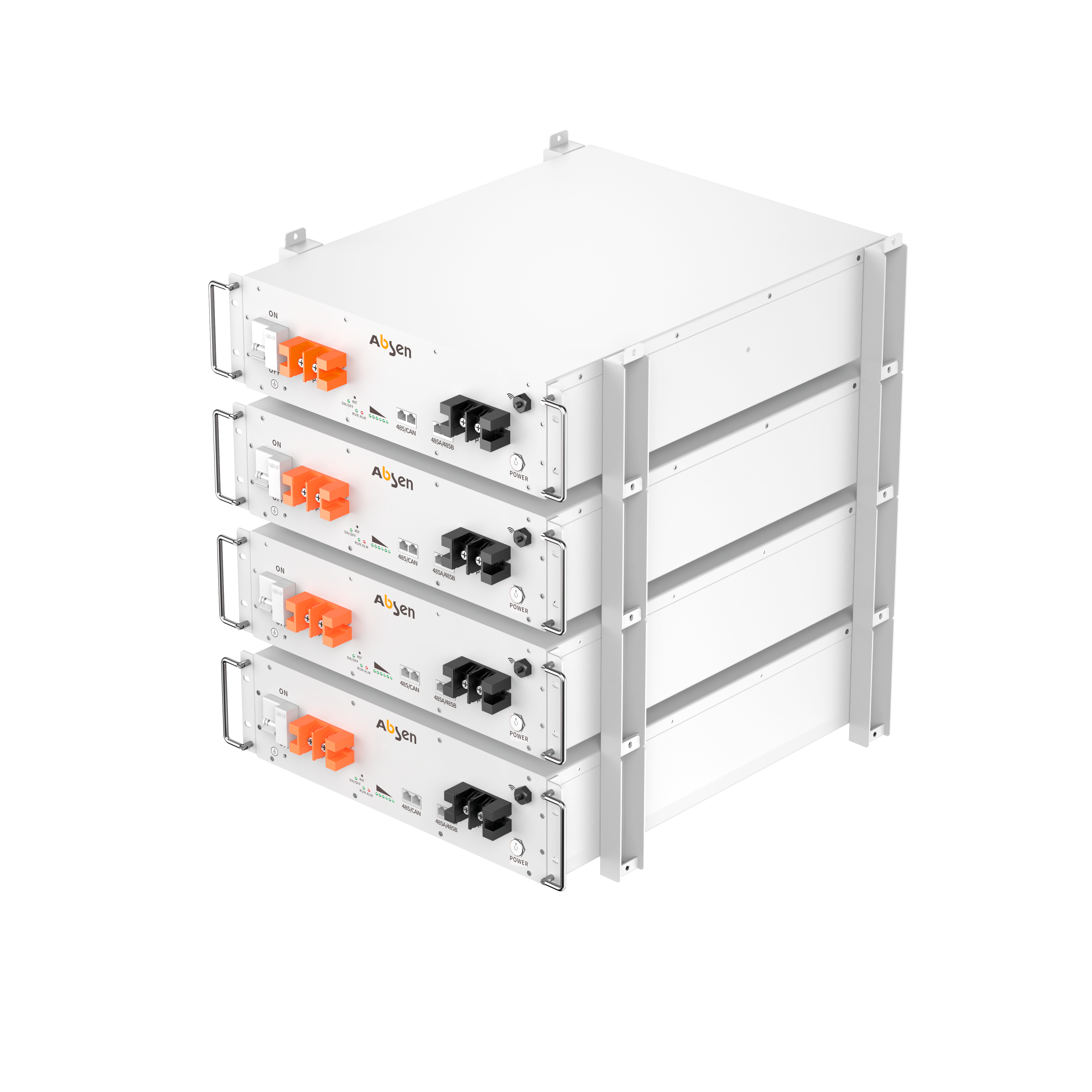

Stacked C&I Battery
| Model | Unity LV |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 44.8~57.6 |
| Capacity (Ah) | 100 |
| Nominal Capacity (kWh) | 5.12 |
| Nominal Charge/Discharge Current (A) | 50/50 |
| Max Charge/Discharge Current (A) | 100/100 |
| Depth of Discharge | 95% |
| Battery Type | LFP |
| Fire Protection System | Built-in aerosol fire extinguisher |
| Certificates | CB, IEC62619, CE-EMC, EN61000, UKCA, UN38.3, MSDS |
| Structure | |
| Dimension (W*D*H)(mm) | 483*555*130 |
| Weight (Kg) | 43 |
| IP Rating | IP20 |
| Installation Method | Floor mounted, Stack-mounted |
| Working Environment | |
| Charge Working Temperature (℃) | 0~55 |
| Discharge Working Temperature (℃) | -20~55 |
| Altitude (m) | ＜2500 |
| Humidity (RH) | 5-95% |
| Communication/Warranty | |
| Communication Port | RS485, CAN |
| Warranty Period | 5 years |
| Compatible Inverter List | DEYE, GROWATT, VICTRON, SOLIS, MUST, LUXPOWER, AFORE, SUNSYNK, FELICTY... |
