Residential Low Voltage Energy Storage System
Residential Low Voltage Energy Storage System

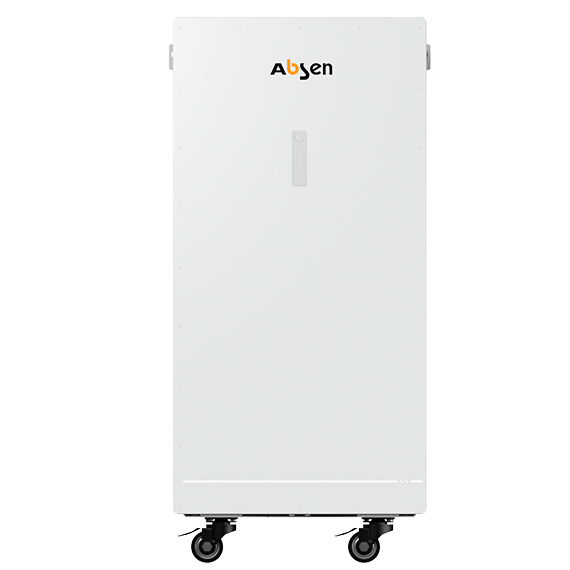

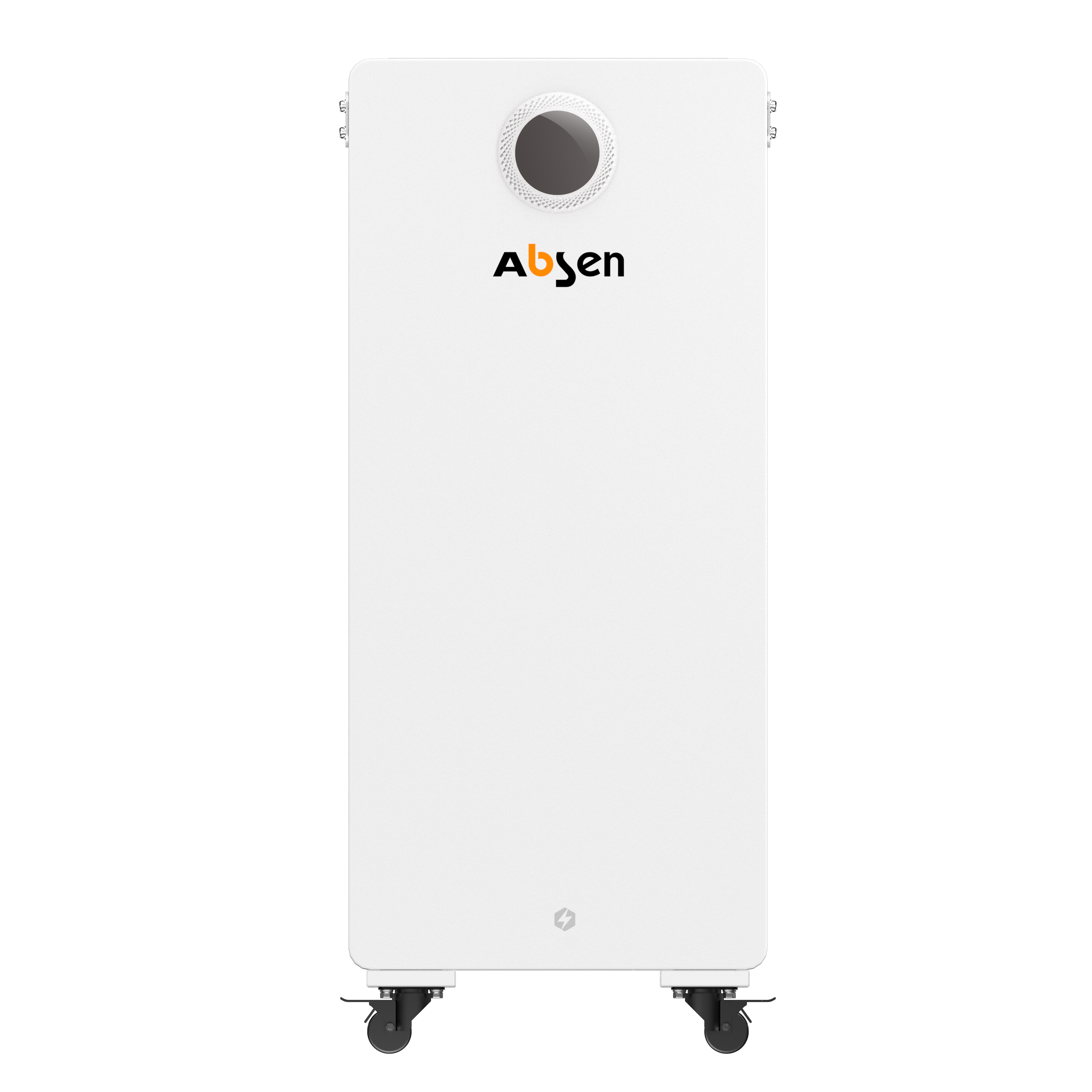

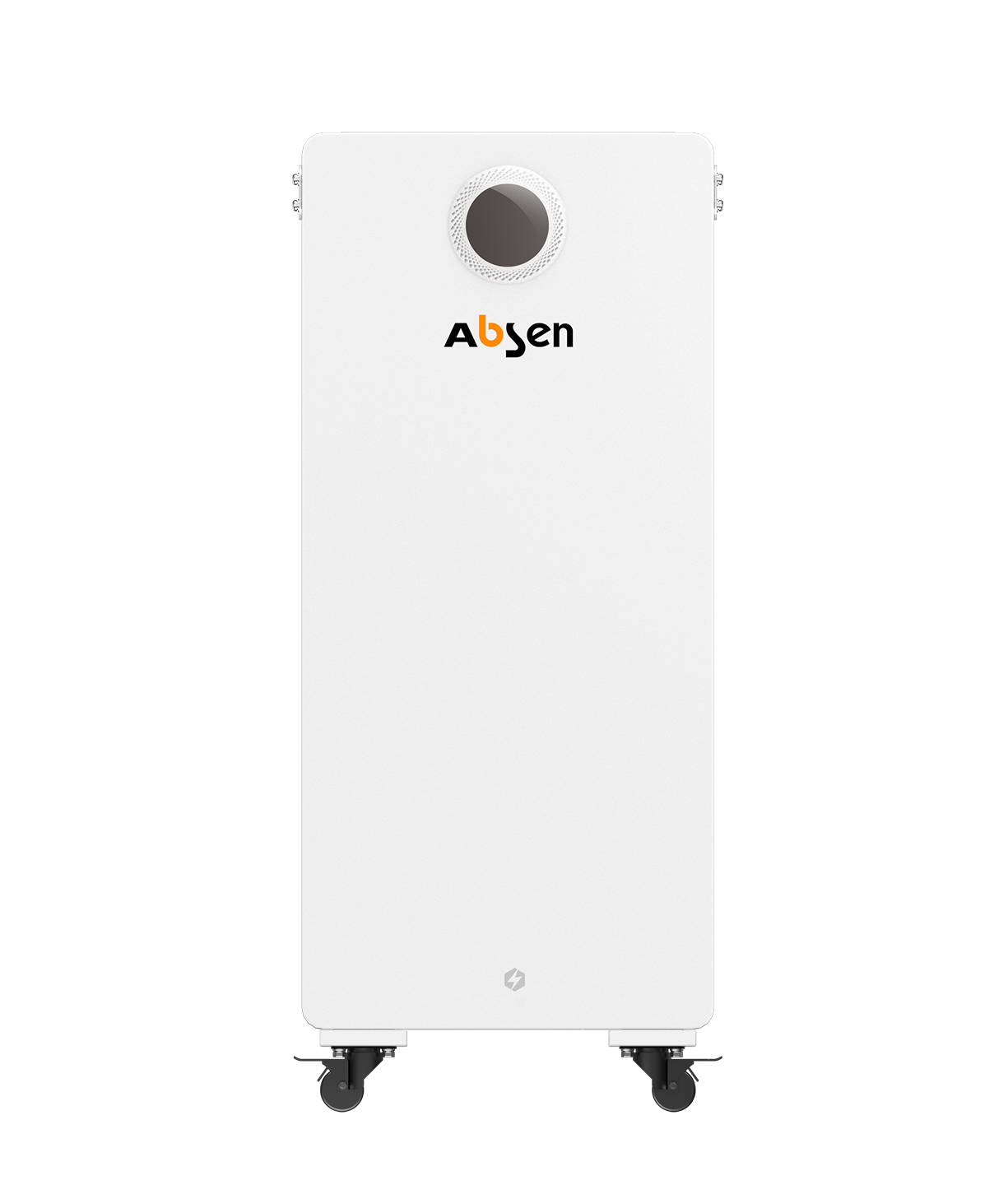

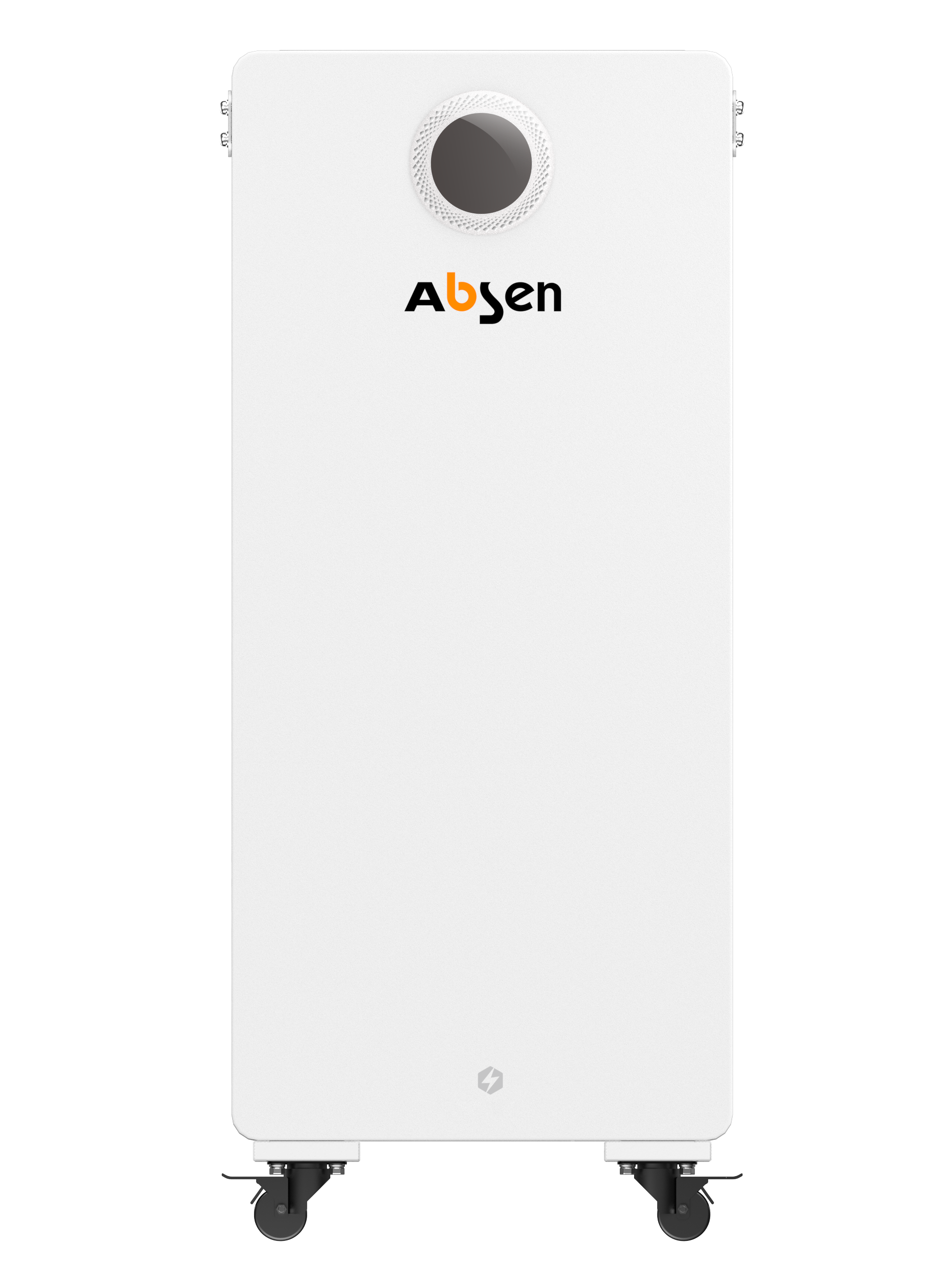

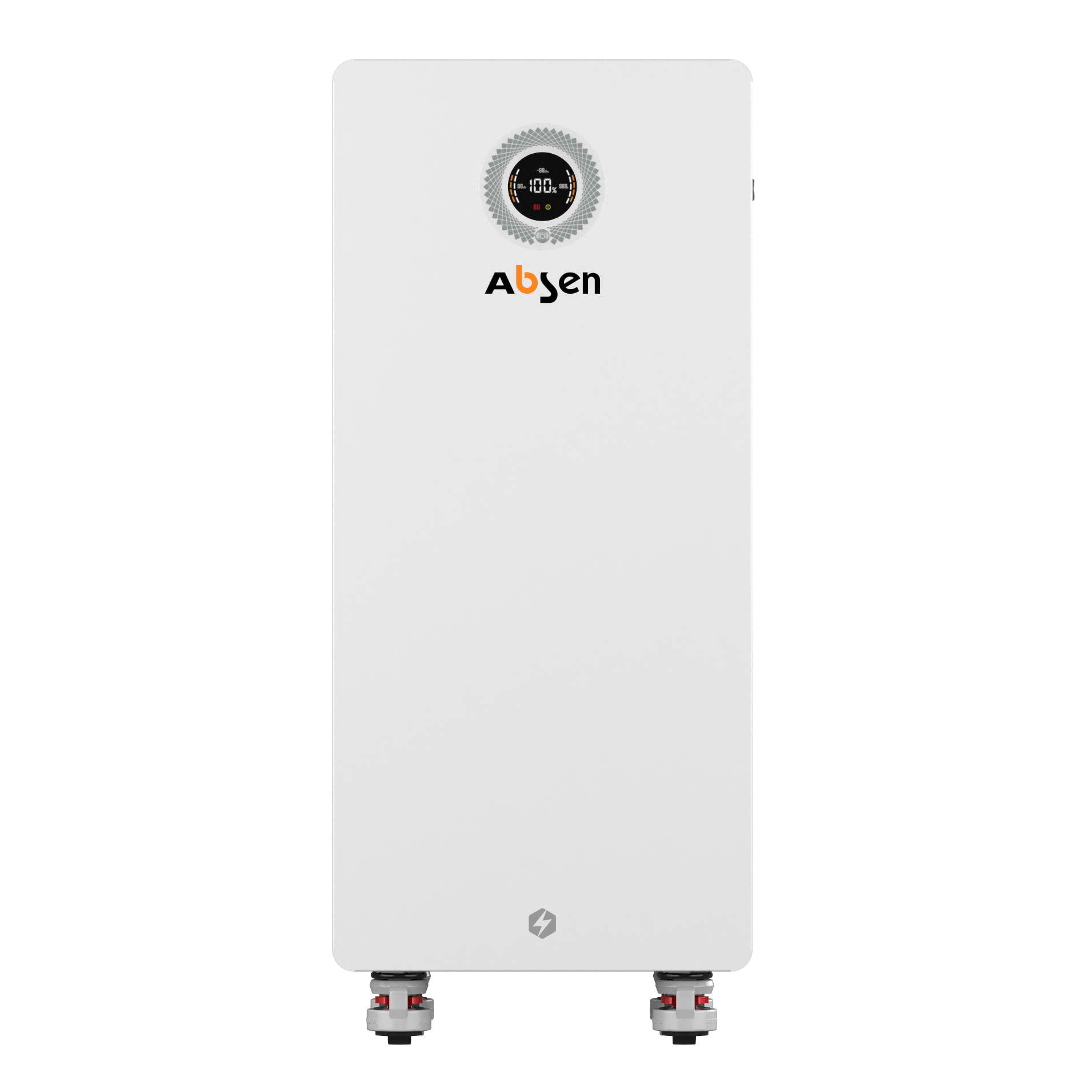

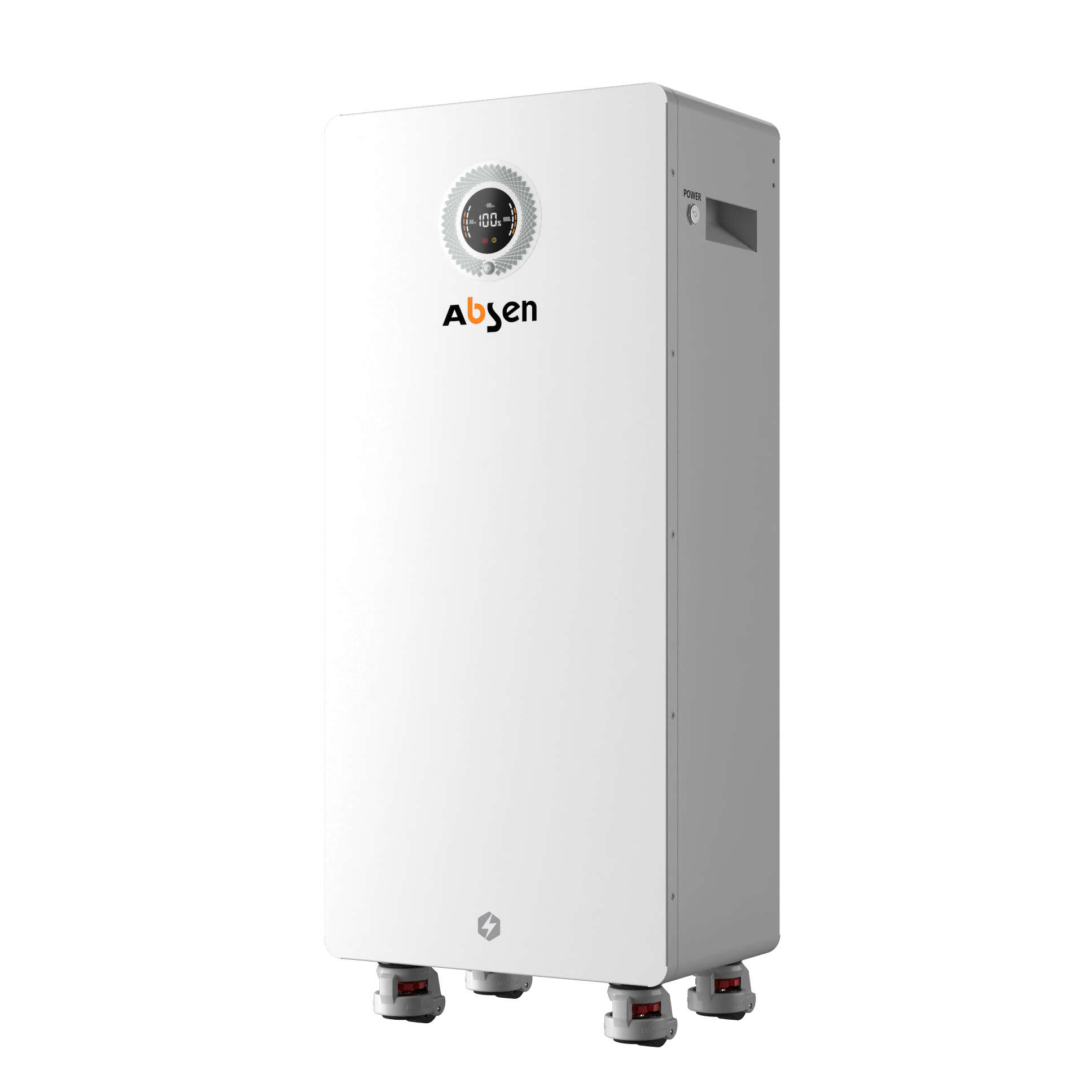

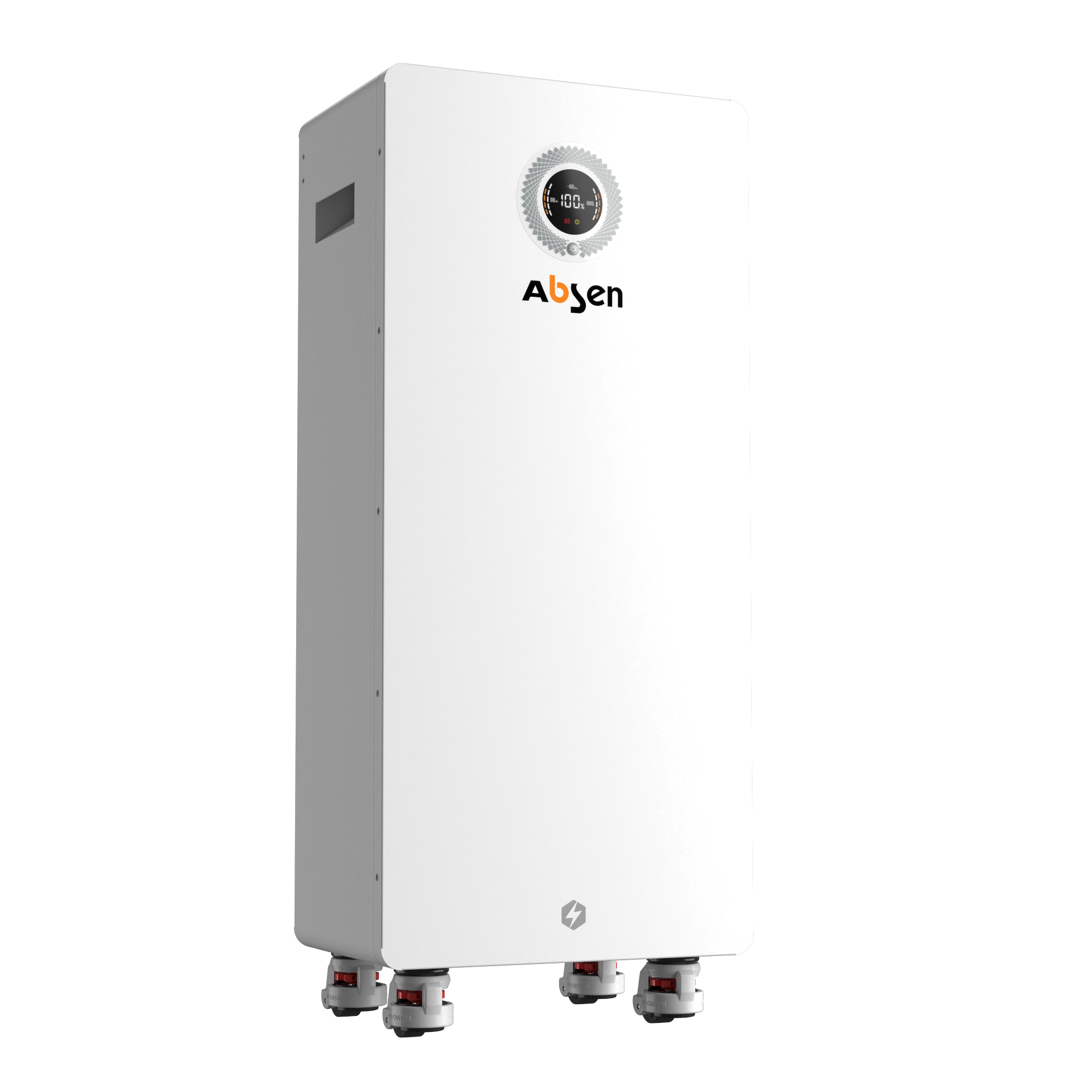

EBOX16, The next-generation household low-voltage energy storage! Its 314Ah high-capacity cells maximize energy density, enabling high-speed charge/discharge for top efficiency.
Install it your way: wall-mounted for space-saving, floor-standing for stability, or pulley-equipped for easy single-person mobility. With an IP65 rating and multiple safety features like circuit breakers and aerosol fire suppression, it’s worry-free.
Take control with just one tap on your smartphone APP! Monitor the energy storage status in real-time, and enjoy the ultimate convenience of remote maintenance and upgrades. Manage your home energy effortlessly at your fingertips! EBOX16 redefines the home energy storage experience and ushers in a new era of intelligent power usage.
Module Design
Exceptional Performance
Easy installation
Smart and Easy Operation
Benefits
Exceptional Performance
With max 200A discharge current and 300A peak current, it boosts charging efficiency and delivers robust power output.
16.076KWh nominal capacity meets higher energy storage needs. Operates at 0-55℃ for charging and -25-55℃ for discharging, ensuring high/low-temperature adaptability for diverse environments.
Intelligent Management
Built-in WiFi for seamless remote intelligent APP monitoring and real-time management; supports APP OTA & remote firmware updates to cut after-sales costs.
Safe & Reliable
6000 cycle lifespan, and 10-year warranty for worry-free after-sales service.
Built-in circuit breaker and automatic fire extinguishing device, reliable fire protection, IP65 protection, no fear of harsh weather.
Easy Installation

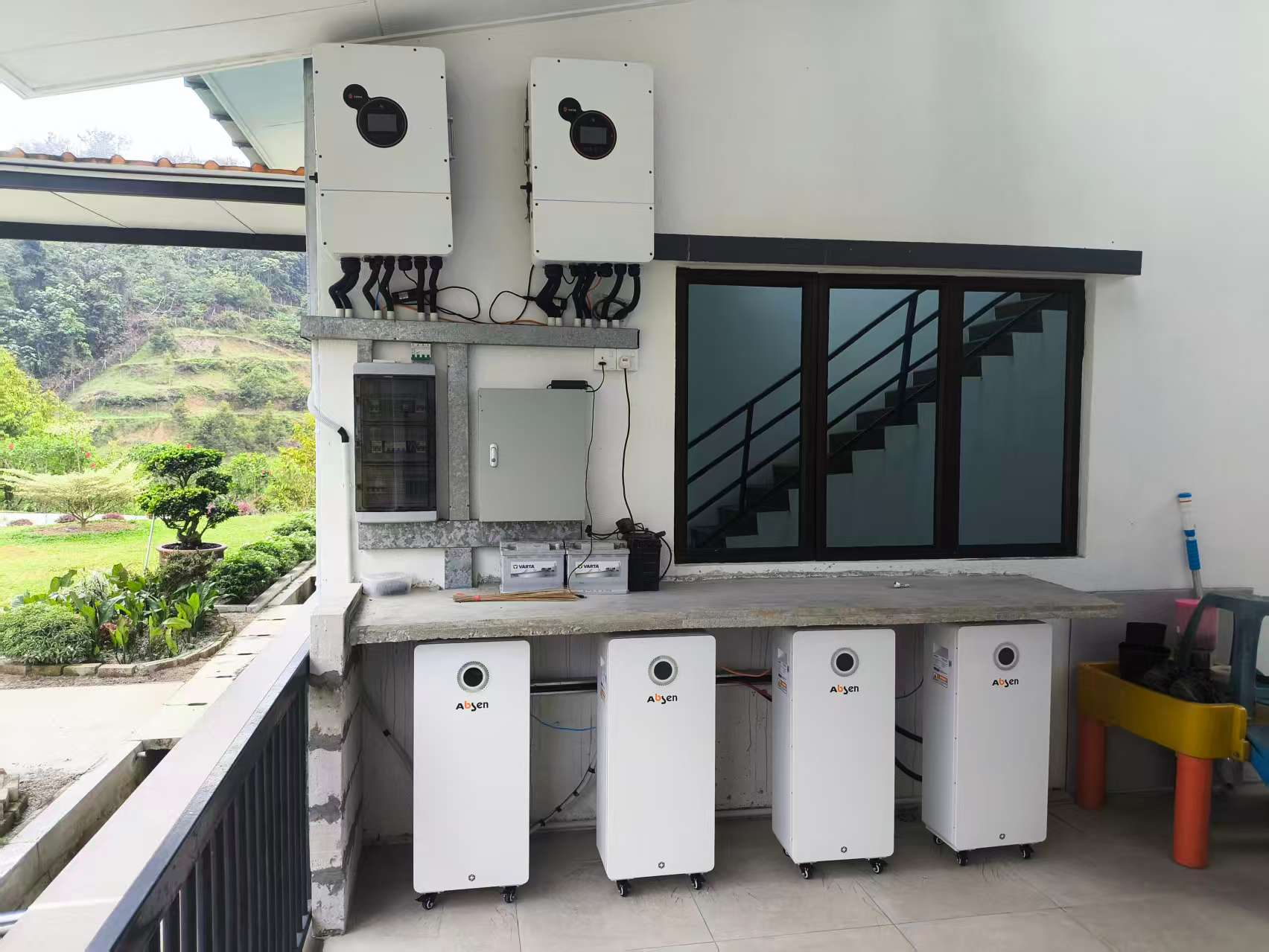

Modular design for flexible expansion: up to 15 units in parallel, expanding capacity to 240kWh.

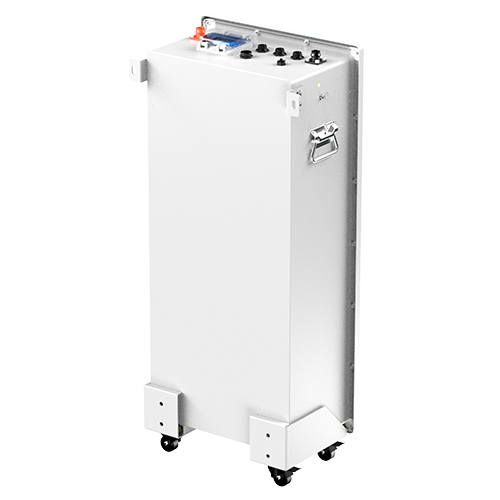

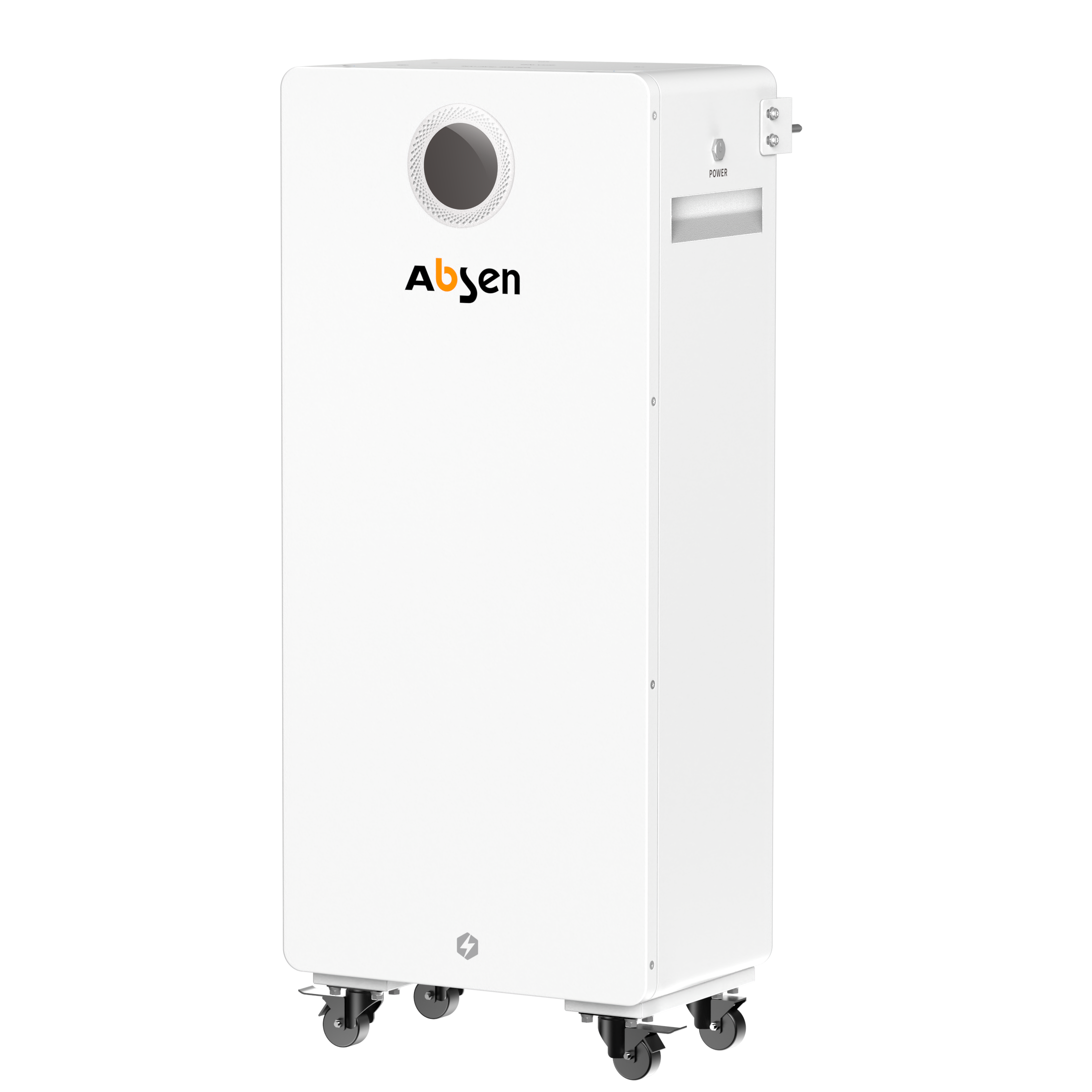

Designed light and simple with built-in pulleys, it allows one-person moving and installation.
Parameters
ModelWX-16.0-LPB
Nominal Voltage (Vdc)51.2
Capacity (Ah)314
Nominal Capacity (kwh)16.076
Built-In Circuit Breaker125A,2P
Nominal Charge/Discharge Current(A)160/160
Max Charge/Discharge Current(A)200/200
Peak Current(A)300@60s
Cycle Life6000 @90%DOD,25°C/0.5C
Structure
Dimension(W*D*H)(mm)432 x245 x921
Weight(Kg)124
IP RatingIP65
InstallationWall mounted, Floor mounted
Working environment
Charge Working Temperature(℃)0~55℃
Discharge Working Temperatue(°C)-25~55°C
Altitude(M)<2500
Humidity(RH)5-95%
Communication/Warranty
Communication PortRS485,CAN
Warranty Period10 years
