Liquid CoolingCube 261-Y
Outdoor Distributed
Energy Storage System
Outdoor Distributed
Energy Storage System

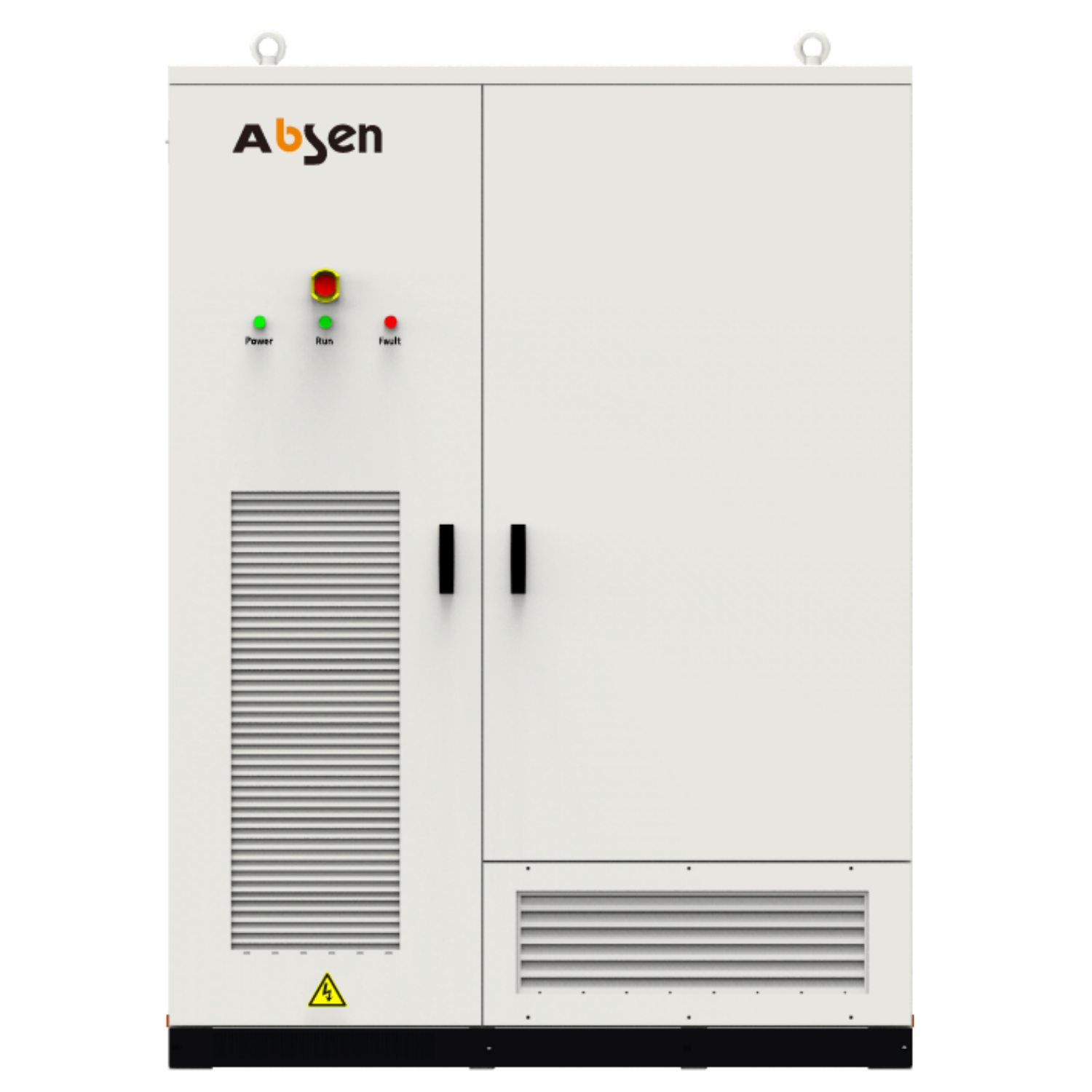

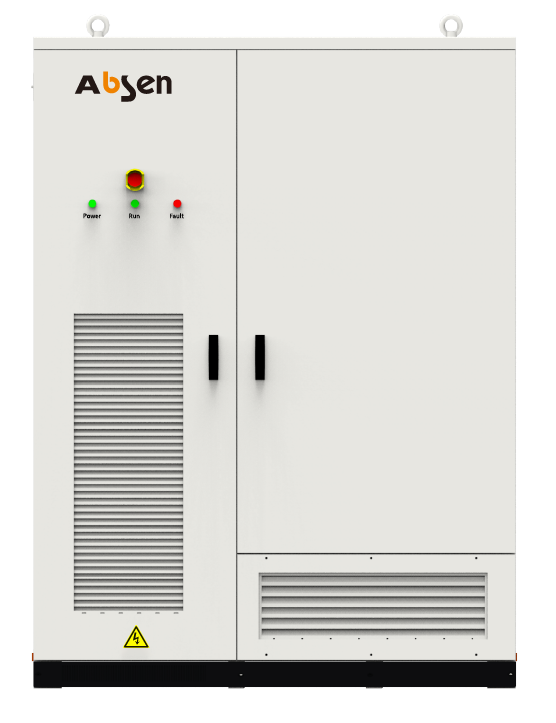

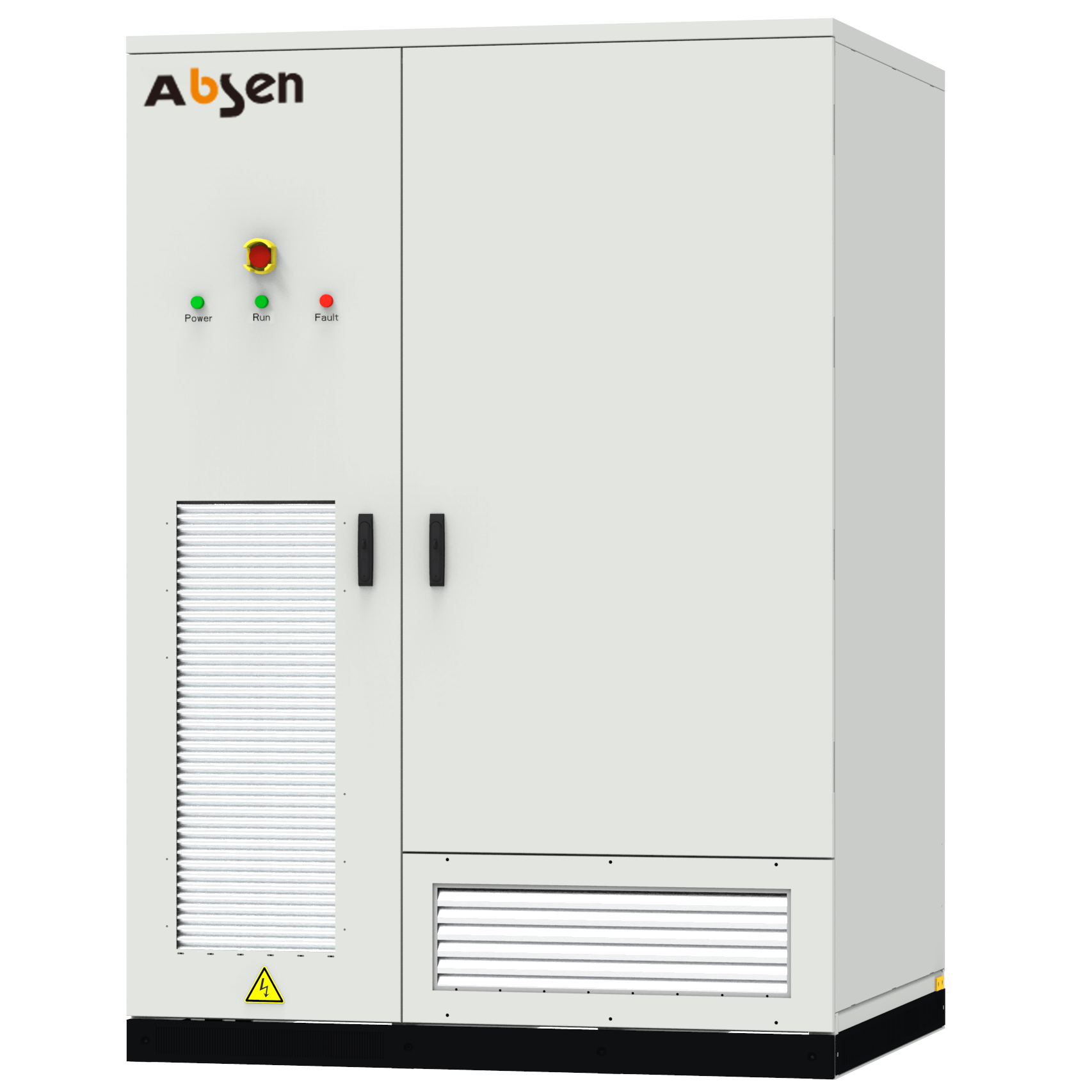

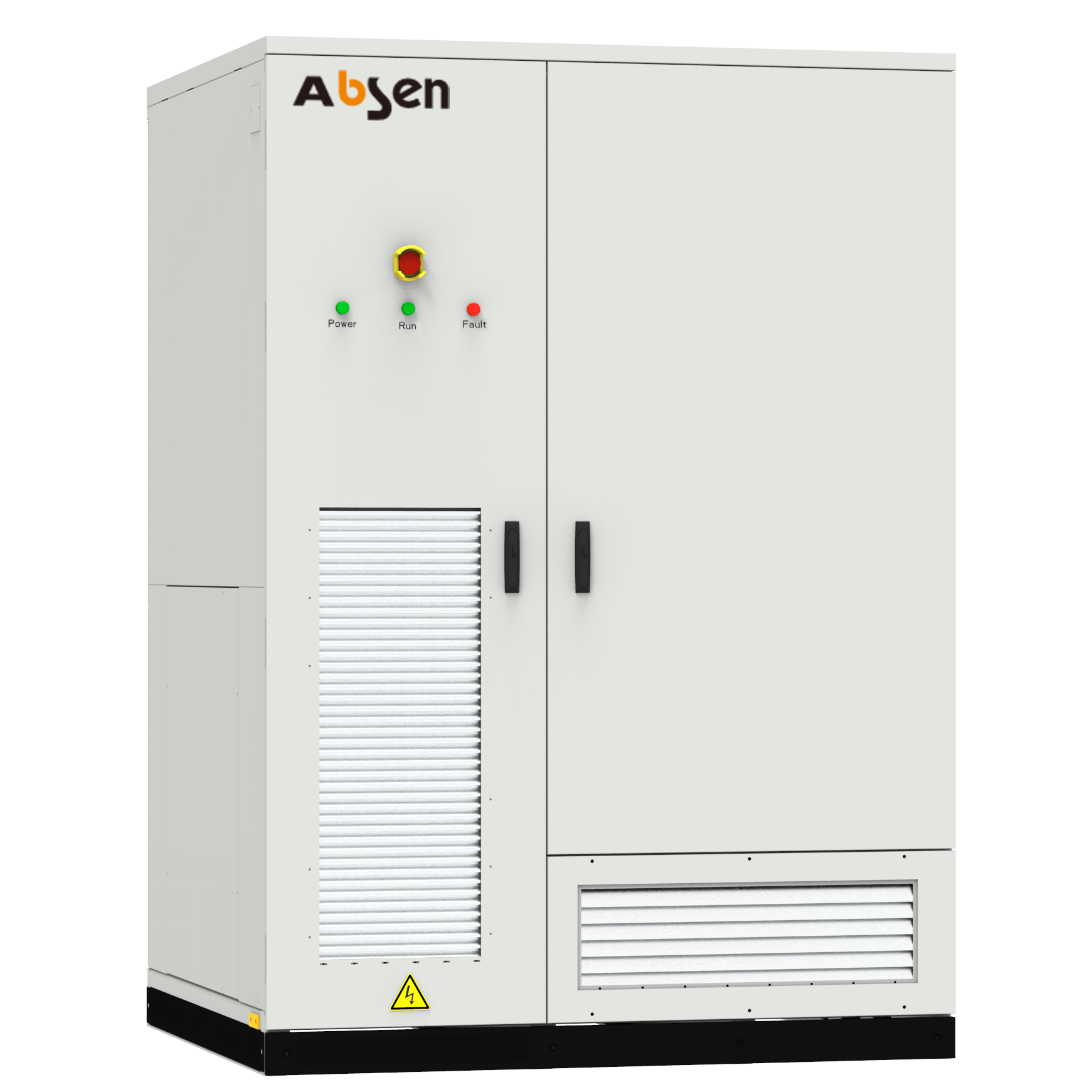

Cube 261-Y
The Cube 261-Y integrated photovoltaic - energy storage system adopts an integrated multi-functional design. It supports photovoltaic access and seamless grid-connected and off-grid switching, covering all scenarios of photovoltaics, energy storage, and diesel generators. Equipped with an intelligent and efficient Static Transfer Switch (STS), the grid-connected and off-grid switching time is less than 20ms to ensure stable power supply. It provides users with functions such as peak-shaving and valley-filling, demand response for grid dispatching, and power backup services, improving the off-grid power self-sufficiency rate.
Seamless Grid - Off-grid Switch
Covers PV, Storage & Diesel Gen Scenarios
Pack & Cabinet - level Fire Protection
Supports Optional Grid / Off-grid & PV Functions
Benefits
All-in-One Integration
· Battery, PCS, EMS, distribution, cooling and fire protection in one cabinet
· Factory-assembled for rapid deployment and lower on-site cost
Smart Cooling, Reliable Safety
· Intelligent liquid-cooling extends battery life and maintains stable output
· Dual fire-suppression zones (battery + electrical), IP54 protection and C4 anti-corrosion for tough industrial sites
Intelligent Control, Flexible Scaling
· Local + cloud management for real-time monitoring
· Supports self-consumption, peak-shaving, and backup modes with parallel expansion to grow as needed
Extreme Reliability, Global Compliance
· Operates from -25℃ to +55℃ and at 3000m altitude without performance loss
· Certified to IC62619, IEC61000, IEC62477, EN50549, VDE4110 — proven worldwide safety and stability
Parameters
ModelCube 261-Y
PV (DC)
Max PV Input Power (kW)220
PV Input Voltage Rate (V)250-708
MPPT4
Battery (DC)
Rated Battery Energy (kWh)261
Rated System Voltage (V)832
Battery TypeLFP
Battery Capacity (Ah)314
Series of Battery1P*52S*5S
AC Output
Rated AC Power (kW)125
Rated AC Current (A)180
Rated AC Voltage400V, 3P+N+PE, 50/60Hz
THDi<3% (rated power)
PF-1 leading to+1 lagging
General Data
Protection LevelIP54
Operating Temperature ()-25~60(Derating above 45)
Altitude (m)3000m (>3000m derating)
CommunicationRS485/ CAN 2.0/ Ethernet/ dry contact
Dimensions (W*D*H)(mm)1696*1350*2300
Fire Protection SystemAerosol
Cooling MethodLiquid cooling
Weight (approx.)(kg)3400
CertificatesUN38.3, IEC62619, IEC/EN62477, EN61000CEI016, IEC62116/IEC61727, G99,EN50549, VDE4110, NRS 097 etc.

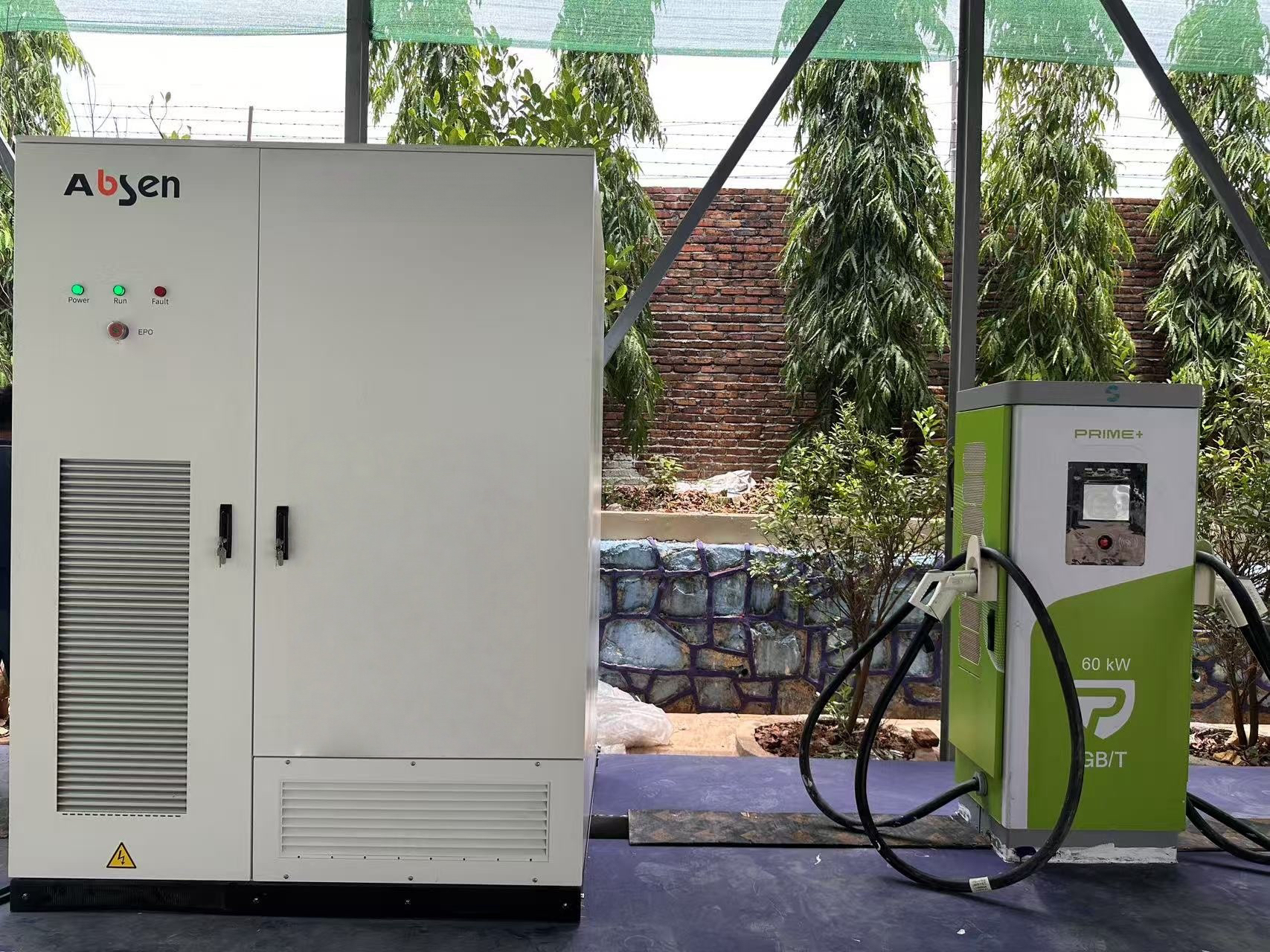

Relevant case
