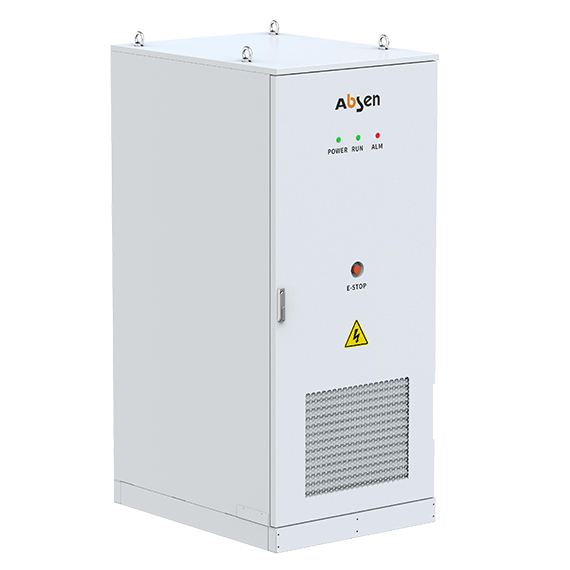

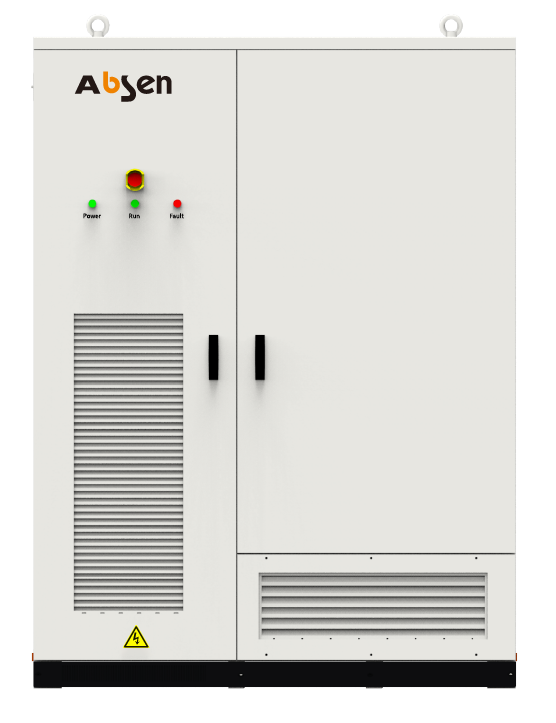

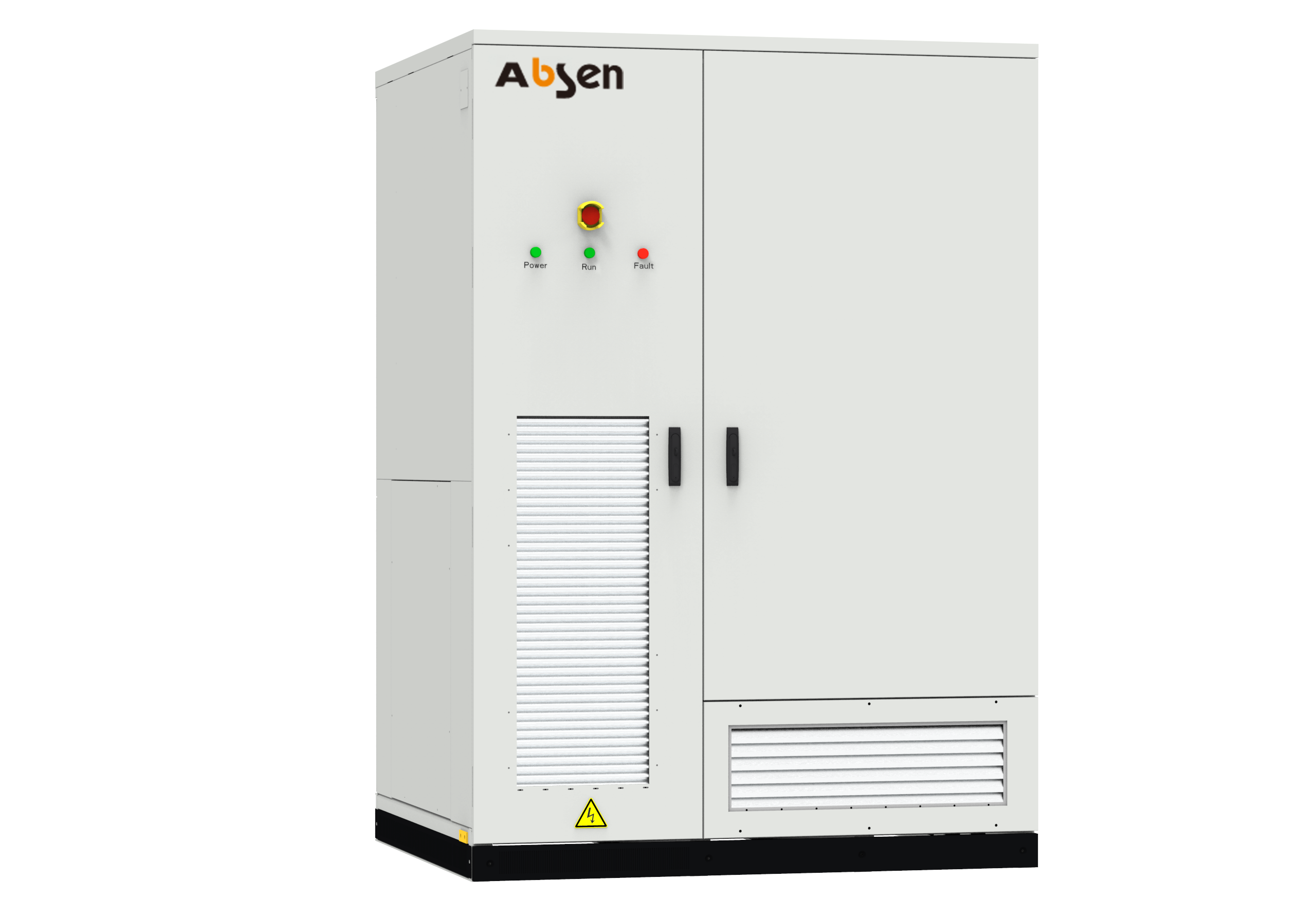

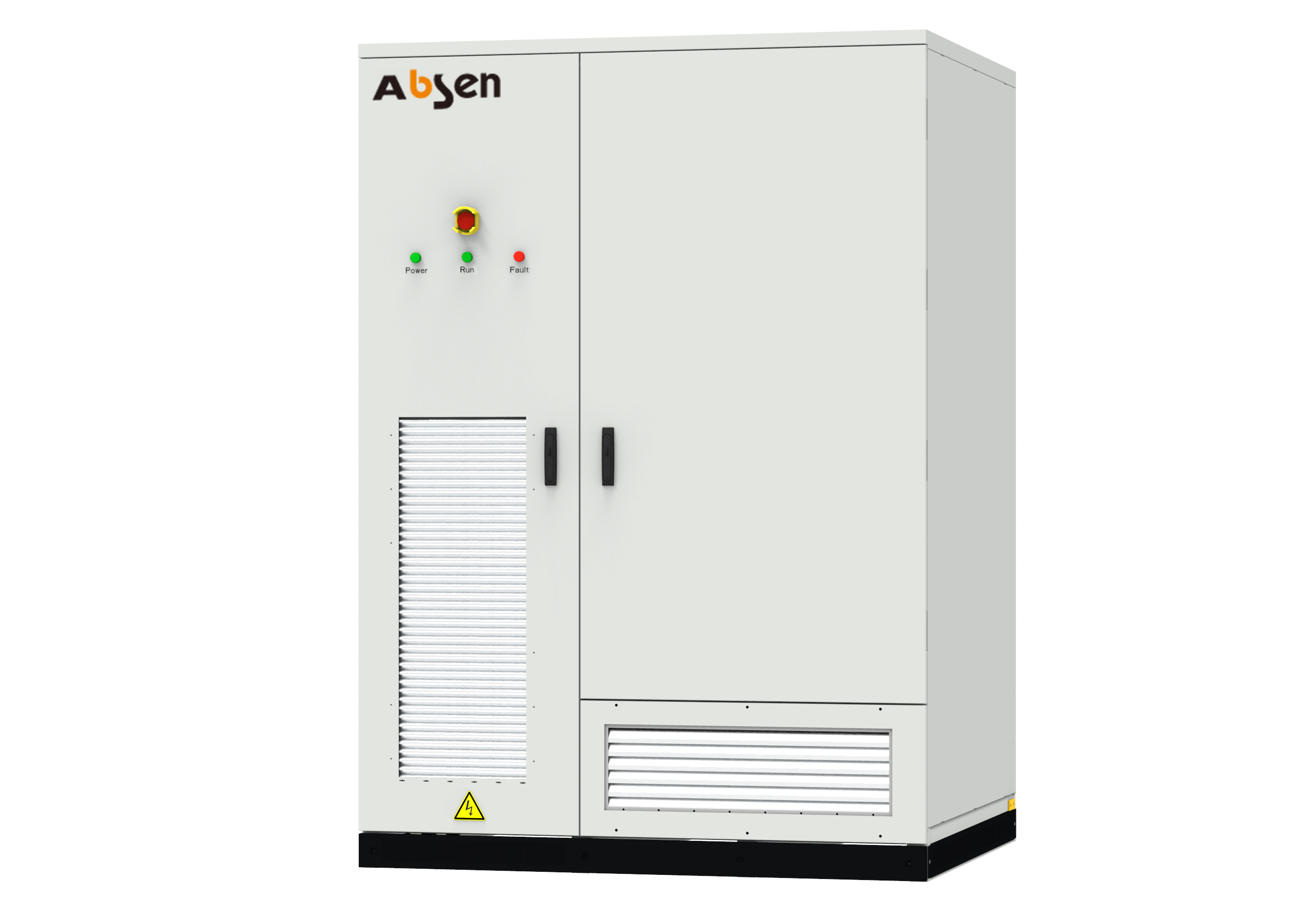

Cube 125/161/192
Outdoor Distributed Energy Storage
（Air Cooling）
| Model | CX-125/261-FP |
| system parameter | |
| Battery capacity | 261kWh |
| Rated power | 125kW |
| AC voltage | 400V,3L+N+PE,50/60Hz |
| Communication | 4G/CAN/RS485 |
| Cooling method | Liquid cooling |
| Protection grade | IP55 |
| Operation temperature | -20℃~55℃ |
| Humidity | 5%RH~95%RH |
| Altitude | ≤4000m |
| Dimensions | 1000*1300*2350(W*D*H)mm |
| Fire extinguisher system | Aerosol |
| Weight | 2500kg |
| Battery parameters | |
| Pack capacity | 52.2kWh |
| System capacity | 261.2kWh |
| Battery voltage range | 650~949V |
| Cycle life | ≥8000 |
| Certification | IEC62619、EN61000-6-1/3、UN38.3、RoHs |
| AC side parameters | |
| Output power | 125kVA |
| Charge/discharge current | 180A |
| MAX.AC power | 150kW |
| MAX AC current | 217A |
| Current harmonics | <3% |
| Voltage distortion degree | <3% |
| Model | CX-125/261-FP-Y |
| PV(DC) | |
| Max.PVinput power | 220kW |
| PVinput voltage rate | 312~850V |
| MPPT | 8 |
| Battery(DC) | |
| Rated battery energy | 261kWh |
| Rated system voltage | 832V |
| Battery type | LFP |
| Battery capacity | 314Ah |
| Series of battery | IP*52S*5S |
| AC Output | |
| Rated AC power | 125kW |
| Rated AC current | 180A |
| Rated AC voltage | 400V,3P+N+PE,50/60Hz |
| THDi | <3%(rated power) |
| PF | -1 leading to+1 lagging |
| General Parameters | |
| Protection level | IP54 |
| Operating temperature | -25~60℃(Derating above 45℃) |
| Altitude | 3000m (>3000m derating) |
| Communication | RS485/CAN 2.0/Ethernet/dry contact |
| Dimension (W*D*H)mm | 1696*1350*2300 |
| Fire extinguishing system | Aerosol |
| Cooling Method | Fluid cooling |
| Weight (approx.) | 3400kg |
| Certification | UN38.3;IEC62619;EC61000;IEC62477;IEC62116+61727;EN50549;NRS-097;VDE4110;CEI016;C10/11;G99 |
