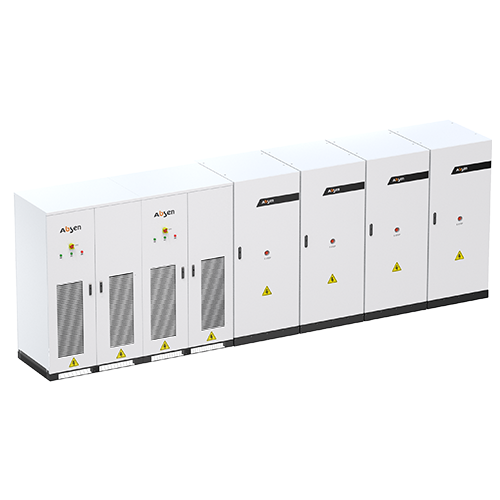

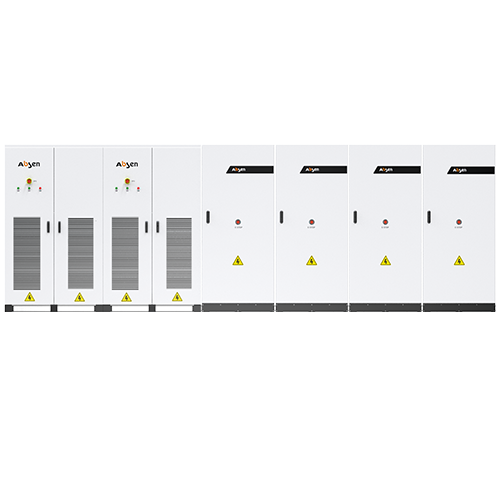

Cube 1000-A
Outdoor Distributed Energy Storage
| PCS Cabinet | Monet-50OTS |
| Rated ACpower | 500kW(25kW*4) |
| Rated AC current | 200A*4 |
| Rated AC voltage | 400V, 3W+N+PE |
| DC voltage range | 580~950V |
| DC voltage range | 580~950V |
| Isolation transformer (optional) | 250/500kVA |
| STS (optional) | 150/300/600kW |
| Degree of protection | IP54 |
| Cooling method | Intelligent air cooling |
| Altitude | 3000m (over 2000m derating) |
| Dimensions (W*D*H)mm | 1350*1000*2300 |
| Weight (approx.) | 2240kg |
| Certifications | EN50549-1.EN 62477-1.VDE V0126-1-1, NRS 097-2-1, EN 50549-1/-2 NL, IEC61000-6-2/-4 |
| Photovoltaic cabinet | Monet-(DC500) |
| Rated power | 500kW (50kW*10) |
| PV input voltage | 250-500V |
| Max.PV input current | 10*160A |
| MPPT quantity | 10 |
| Power Factor | -1leading to+1 lagging |
| THDU | <3% (Rated power) |
| Degree of protection | IP54 |
| Cooling method | Intelligent air cooling |
| Dimensions (W*D*H)mm | 1350*1000*2300 |
| Weight (approx.) | 900kg |
| Certifications | EN/IEC62109-11-2, EN/IEC 61000-6-21-4 |
| Battery Cabinet | GM-225.0-HPB |
| Battery rated energy storage capacity | 2 25 kwh |
| System rated voltage | 716.8V |
| System voltage range | 580V~817.6V |
| Battery pack series and parallel connection | 1P*32S*7S |
| Cooling method | Air conditioning cooling |
| Degree of protection | IP54 |
| Dimensions (W*D*H)mm | 1000*1100*2300 |
| Weight (approx.) | 2180kg |
| Certifications | UN38.3, IEC62619, IEC61000-6-21-4 |
